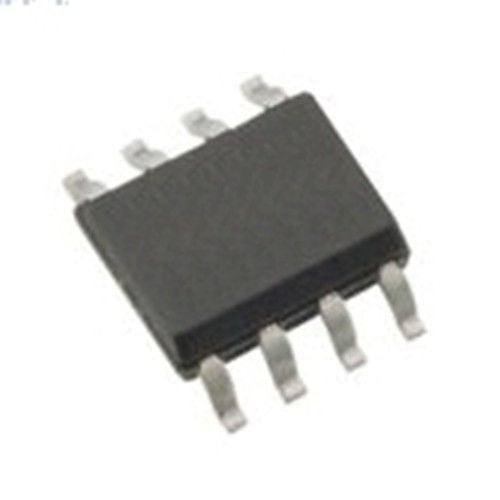

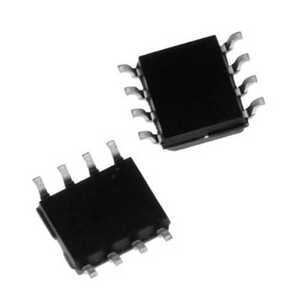

LM317 SMD (Linear Voltage Regulator, 100mA, 1-Ch, Adjustable)
Non-returnable
BD 1.400
The LM317L is an adjustable 3−terminal positive voltage regulator capable of supplying in excess of 100 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making them essentially blow−out proof. The LM317L serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317L can be used as a precision current regulator
Features
Output Current in Excess of 100 mA
Output Adjustable Between 1.2 V and 37 V
Internal Thermal Overload Protection
Internal Short Circuit Current Limiting
Output Transistor Safe−Area Compensation
Floating Operation for High Voltage Applications
Standard 3−Lead Transistor Package
Eliminates Stocking Many Fixed Voltages
NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These are Pb−Free Devices
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Output Voltage | 1.2 → 37 V |
| Maximum Output Current | 100mA |
| Package Type | SOIC |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Reference Voltage | 1.3V |
| Line Regulation | 0.07 %/V |
| Load Regulation | 0.5 % |
| Height | 1.5mm |
| Dimensions | 5 x 4 x 1.5mm |
| Series | LM317 |
| Width | 4mm |
| Length | 5mm |
| Accuracy | ±4% |
