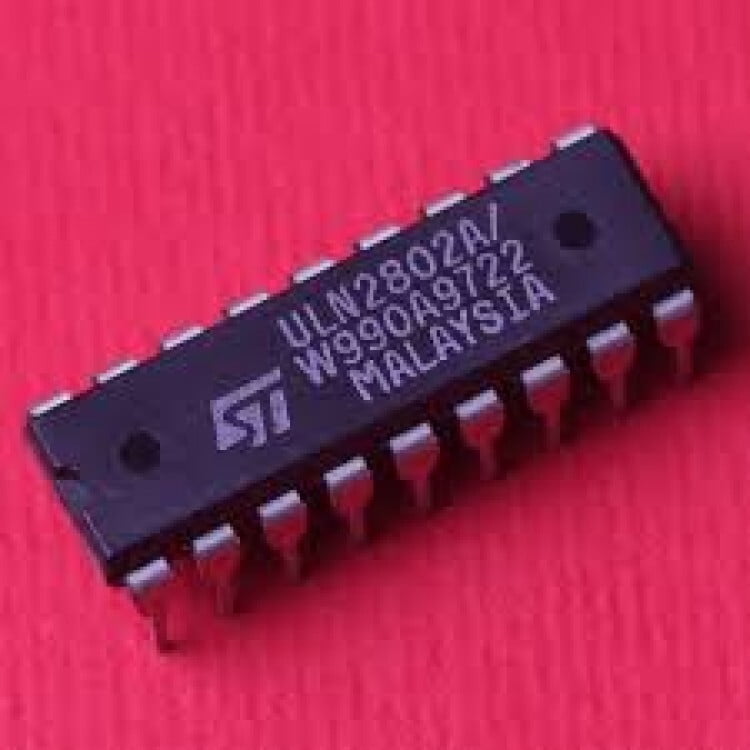

ULN2802 (EIGHT DARLINGTON ARRAYS)
BD 2.000
The ULN2801A-ULN2805Aeach contain eight darlington transistors with common emitters and integral suppression diodes for inductive loads. Each darlington features a peak load current rating of 600mA (500mA continuous) and can withstand at least50V in the offstate.Outputsmay be paralleled for higher current capability. Five versions are available to simplify interfacing to standard logic families : the ULN2801A is designed for generalpurpose applicationswith a current limit resistor; the ULN2802Ahas a 10.5kΩ inputresistor and zenerfor 14-25V PMOS; the ULN2803Ahas a 2.7kΩ input resistor for 5V TTL and CMOS ; the ULN2804A has a 10.5kΩ input resistor for 6-15V CMOS and the ULN2805A is designed to sink a minimum of 350mA for standard and Schottky TTL where higher output current is required. All types are supplied in a 18-lead plastic DIP with a copperleadfromandfeaturethe convenientinputopposite-outputpinout to simplify board layout.
Choose Quantity
Product Details
Features:
. EIGHTDARLINGTONS WITHCOMMON EMITTERS
. OUTPUT CURRENT TO 500 mA
. OUTPUT VOLTAGE TO 50 V
.INTEGRAL SUPPRESSION DIODES
. VERSIONS FOR ALL POPULAR LOGIC FAMILIES
. OUTPUT CAN BE PARALLELED
.INPUTS PINNED OPPOSITE OUTPUTS TO
SIMPLIFY BOARD LAYOUT
