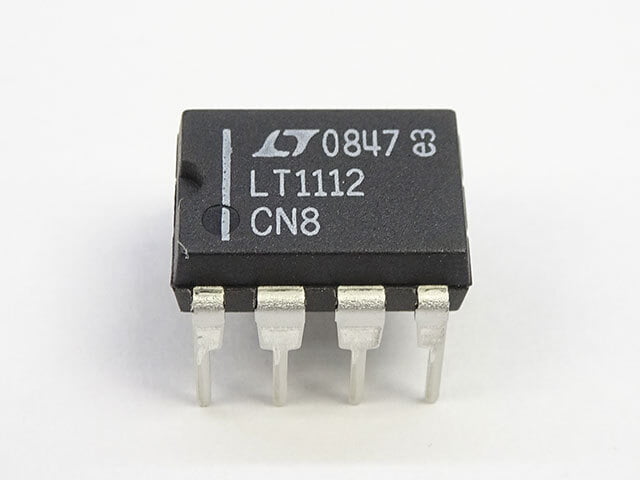

LT1112CNB (OP, AMP 2 Amplifier, 750 kHz)
BD 5.500
The LT1112CN8#PBF is a quad Operational Amplifier achieve a new standard in combining outstanding precision specifications. The performance of the selected prime grades matches or exceeds competitive devices. The LT1112 also provide a full set of matching specifications, facilitating their use in such matching dependent applications as two and three op amp instrumentation amplifiers. Another set of specifications is furnished at ±1V supplies. This, combined with the low 320µA supply current per amplifier, allows the LT1112 to be powered by two nearly discharged AA cells.
- 0.5µV/°C Maximum offset voltage drift
- 250pA Maximum input bias current
- 400µA per Amplifier Maximum supply current
- 1 million Minimum voltage gain
- Guaranteed specs with ±1.0V supplies
Applications
Sensing & Instrumentation, Power Management
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 750kHz |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V |
| Typical Slew Rate | 0.3V/µs |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Length | 10.16mm |
| Rail to Rail | No |
| Dimensions | 10.16 x 6.48 x 3.3mm |
| Typical Voltage Gain | 134 dB |
| Height | 3.3mm |
| Width | 6.48mm |
| Typical Input Voltage Noise Density | 16nV/√Hz |
