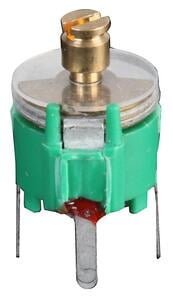

Variable/Trimmer Capacitor (2.5pF to 22pF, 250V)
Non-returnable
BD 5.000
This trimmer capacitor from Vishay is a variable capacitor and can be used to calibrate equipment. It can withstand a voltage of 250 VDC. This trimmer capacitor has a maximum operating temperature of 70 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8.6 mm long, 10(Max) mm tall and 8(Max) mm deep.
Choose Quantity
Product Details
| ECCN (US) | EAR99 |
| Part Status | Active |
| Mounting | Through Hole |
| Cmin/Cmax | 2.5/22pF |
| Voltage | 250VDC |
| Material | Film |
| Special Features | RoHS Compliant |
| Construction | Top/Bottom Adj |
| Termination Style | PC Pin |
| Size (mm) | 8.6 X 8 X 10 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 70 |
| Temperature Coefficient (ppm/°C) | -200±500 |
| Packaging | Bulk |
| Product Length (mm) | 8.6 |
| Product Depth (mm) | 8(Max) |
| Product Height (mm) | 10(Max) |
