500mA 90~240V AC To 9V DC LED Adaptor Switched Converter Regulator Power Supply
BD 3.000

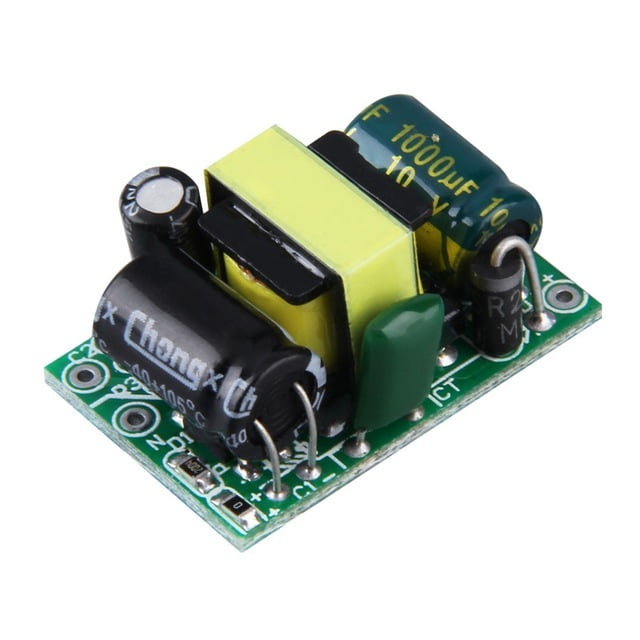

It's a Switching Power Supply Module, Input voltage: 90V to 240V AC 50HZ/60HZ,Output voltage: 9V (±0.1V),Output power: 4.5W,Applied to Power supply for adapter, industrial equipment, MCU and LED lights, etc.
Features:
- Pcb size: 49mm x 31mm
- Input voltage: 90V to 240V AC 50HZ/60HZ
- Input surge current: 20A (full load)
- Output voltage: 9V (±0.1V)
- Output current: 500mA
- Output power: 4.5W
- Output ripple:150mV
- Output efficiency: 80%
- Output Rise Time: 100ms
- Switch machine overshoot: 10%
- Operating temperature: -20 to 60 °c
- Relative humidity: 40 to 90% RH
- Storage: dry indoor
- High/low voltage isolation, 431 voltage regulated, EMI filter circuit, with indicator
- Applied to Power supply for adapter, industrial equipment, MCU and LED lights, etc.
Choose Quantity
Product Details
Protection function:
Package Include:
- Output over power protection: locked, restart recovery
- Short circuit protection: locked, re-starting recovery
- Temperature protection: locked,re-starting recovery
- Overcurrent protection: locked,re-starting recovery
Package Include:
- 1x Switching Power Supply Module
