IC CD4075 (Triple 3-Input OR Gate)
BD 1.400

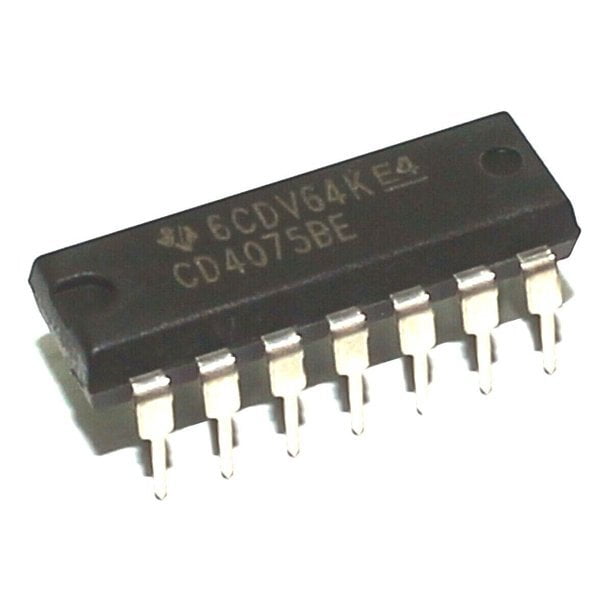

CD4075 Gate IC is in DIP-14 package. This IC has a 3 -18V supply voltage range and output current is 6.8mA. Logic type of the CD4075 is OR and it has 3 outputs, Triple 3 inputs.
Features
• High-Voltage Types (20V Rating)
• CD4071BMS Quad 2-Input OR Gate
• CD4072BMS Dual 4-Input OR Gate
• CD4075BMS Triple 3-Input OR Gate
• Medium Speed Operation: - tPHL, tPLH = 60ns (typ) at 10V
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC
• Standardized Symmetrical Output Characteristics
• Noise Margin (Over Full Package Temperature Range): - 1V at VDD = 5V - 2V at VDD = 10V - 2.5V at VDD = 15V
• 5V, 10V and 15V Parametric Ratings
• Meets All Requirements of JEDEC Tentative Standard No. 13B, “Standard Specifications for Description of ‘B’ Series CMOS Devices”
Choose Quantity
Product Details
Applications of CD4075 Triple 3-Input OR Gate:
- computers
- Calculators
- electronic devices.etc..
