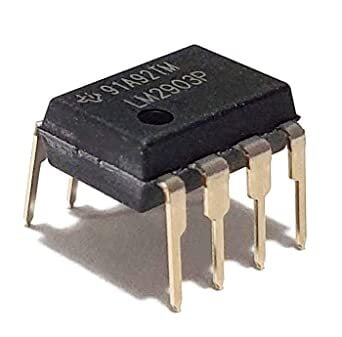

LM2903 (Low power dual voltage comparator)
BD 4.000
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM193 is characterized for operation from 55C to 125C. The LM293 and LM293A are characterized for operation from 25C to 85C. The LM393 and LM393A are characterized for operation from 0C to 70C. The LM2903 is characterized for operation from 40C to 125C.
Choose Quantity
Product Details
Features
Wide single supply voltage range or dual supplies +2 V to +36 V or ±1 V to ±18 V
Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5 V)
Low input bias current: 25 nA typ.
Low input offset current: ±5 nA typ.
Input common-mode voltage range includes negative rail
Low output saturation voltage: 250 mV typ. (IO = 4 mA)
Differential input voltage range equal to the supply voltage
TTL, DTL, ECL, MOS, CMOS compatible outputs
Automotive qualification
