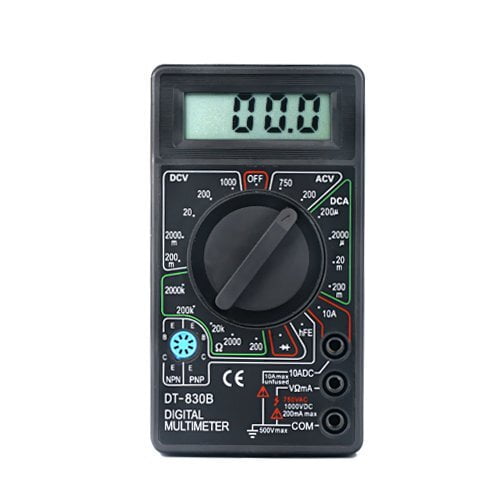

Multimeter DT-830B
6.500BD
Out of stock
The DT830B Digital Multimeter is a very affordable and handy piece of test equipment. It features an easy to read 3.5 digit LCD display. It is equipped with 5 functions and 19 ranges, each test position is quickly and easily selected with a simple turn of the single selector switch.
A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
Features:
3 1/2 digits, 7segment, 0.5"high LCD Display.
Max display: 1999, Auto polarity display.
Small and compact design.
Overload protection on all ranges.
Sampling 2~3 times readings per second.
Diode assembly test /Transistor hFE test.
Low battery voltage indication.
Product Details
Specification:
Model: DT-830B
DC Voltage: 200mV-1000V ±(1.2%+2dgts)
AC Voltage:200-750V ±(2.0%+10dgts)
DC Current: 200μA-200mA ±(1.9%+2dgts)
Resistance: 200Ω-2000kΩ ±(1.2%+2dgts)
Diode Test: Yes
Transistor Test: Yes
Color: Black/Yellow
Power Supply: 9V Battery (Not Included)
Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L x W x H)
Package included:
1 x DT-830B Digital Multimeter
2 x Test Probe
1 x English User Manual
