Compact Digital Multimeter 600V, AC/DC, 10A

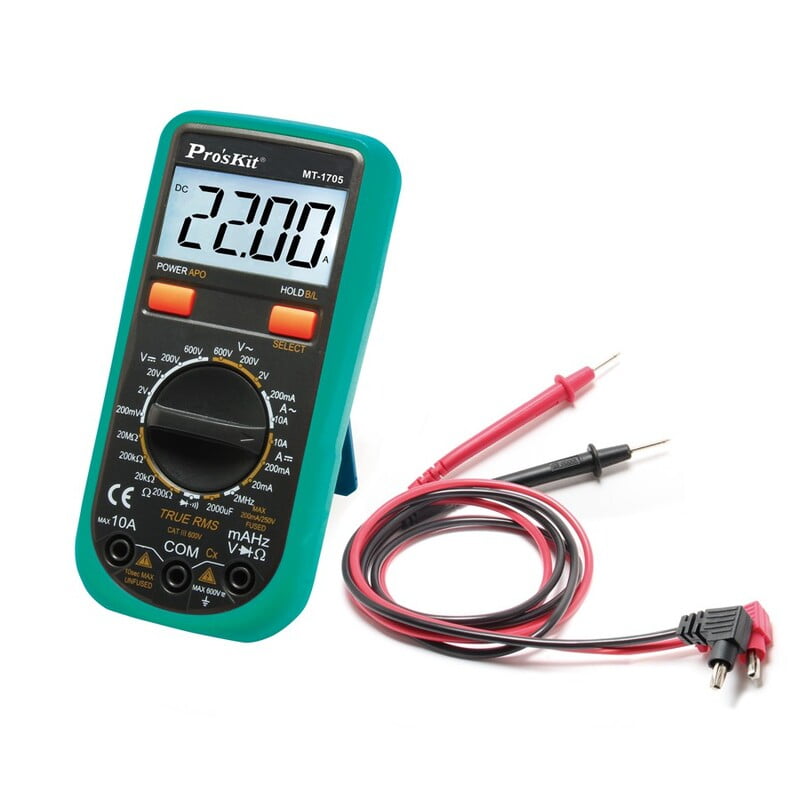

MT-1705 is a 3 1/2 Compact Digital Multimeter with 1999 counts, which able to accurately test and measure different parameters within an electrical circuit for a wide variety of electrical and electronic applications.
Features
- 3 1/2 digits 1999 counts.
- 0.5% best accuracy.
- CAT III 600V safety rated.
- Auto polarity indication.
- AC True-RMS for accurate measurements.
- Extra function: continuity with beeper, diode test, data hold, auto power off, low battery indication, overload indication, LCD backlight.
- Frequency and capacitance are auto range.
- Ideal for wide variety of electrical and electronic testing applications.
Specifications
DC Voltage (V) | 200mV/2V/20V/200V±(0.5%+3d) ,600V±(1.0%+10d) |
AC Voltage (V) | 40Hz-200Hz and 200Hz-1kHz sine and triangular wave: |
200Hz-1kHz other wave: 2V/200V/600V±(8.0%+15d) | |
DC Current (A) | 20mA/200mA±(1.2%+8d),10A±(2.0%+5d) |
AC Current (A) | 40Hz-200Hz and 200Hz-1kHz Sine and triangular wave: |
200Hz-1kHz Other wave: 200mA/10A±(8.0%+15d) | |
Resistance (Ω) | 200±(0.8%+5d), 20K/200K±(0.8%+3d), 20M±(1.0%+25d) |
Frequency (Hz) | 10/100/1k/10k/100k/2M Hz±(1.0%+10d) |
Capacitance (F) | 20nF/200nF/2uF±(3.5%+20d), 20uF/200uF/2000uF±(5.0%+10d) |
Power source | 3V(1.5VAAA×2) (Not included) |
Size (mm) | 150×73.5×35 mm |
Individual Packing | 150×73.5×35 mm |
