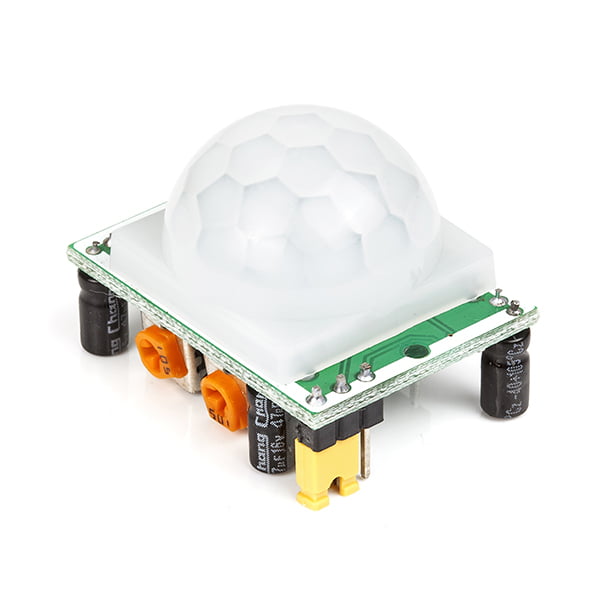

PIR Motion Detection Sensor (HC-SR501)
BD 6.500
The HC-SR501 is a PIR motion detector with an adjustable range that can sense up to 7m. The sensor uses infrared technology and features high sensitivity, ultra-low voltage mode, high reliability, and is ideal for using in battery-operated equipment. This sensor is designed for use in security products, alarm systems, lighting control, industrial automation, toys, etc.
- 7m Sensing range
- Wide voltage range
- Low power consumption
- Adjustable delay
- Temperature compensation
- Wide range of voltages we can apply on its input varying from 4.V to 12V (+5V recommended)
- Its best feature is that it can distinguish between men movement and object movement.
- Its Output voltage is High/Low (3.3V TTL).
- It cover a distance of 7 meter and an area of 110 degrees.
- It’s operating temperature is from -20° to +80° Celsius.
Choose Quantity
Product Details
- HC - sr501 body sensor module
- Human Body sensor industrial automation and lighting control etc. Ideal for Arduino, Raspberry Pi, PIC and much more.
- The sensor: Sensor entering the output range is high, people leave the automatic sensor range of the high, low automatic shutdown delay output.
- Operating voltage range: DC 4.5 - 20 V
- Joint dimensions: 32mm * 24mm
- Infrared sensor with control circuit board
- The sensitivity and holding time can be adjusted
