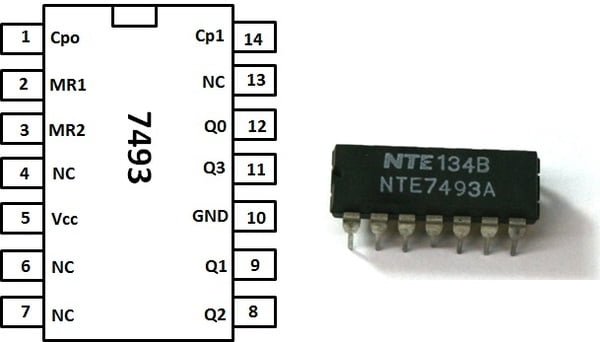

IC 7493 (4-bit binary counter)
BD 1.900
The 7490 datasheet specifies that this counter contains four master-slave flip-flops and additional gating to provide a divide-by-two counter and a three-stage binary counter for which the count cycle length is divide-by-eight for the 7493A. All of these counters have a gated zero reset and the 7490A also has gated set-to-nine inputs for use in BCD nine’s complement applications
Features
- 4-Bit Binary Counter IC
- Typical Operating Voltage: 5V
- Operating Voltage Range: 4.5V to 5.5V
- Output High Voltage: 3.5V
- Output Low Voltage: 0.25V
- Output current when high: -0.4mA
- Output current when low: 8mA
- CP0 and CP1 input clock frequency: 32MHz and 16MHz resp.
- CP0 and CP1 pulse width: 15nS and 30nS resp.
- Available in 14-pin PDIP, GDIP, PDSO packages
Choose Quantity
Product Details
Pin Description
Pin Number | Pin Name | Description |
1,2,3,6 | NC | No Connection |
4,5,8,9 | Q0, Q1, Q2, Q3 | Output pins |
7 | Ground | Connected to ground of the system |
10 | CP0 | Clock Input – divide by 2 |
11 | CP1 | Clock Input – divide by 8 |
12,13 | MR | Master Reset – Clear Input |
14 | Vcc | Supply voltage – 4.5V to 5.5V |
