Metal Detector Kit Electronic Kit DC 3V-5V Non-Contact Sensor
BD 11.500

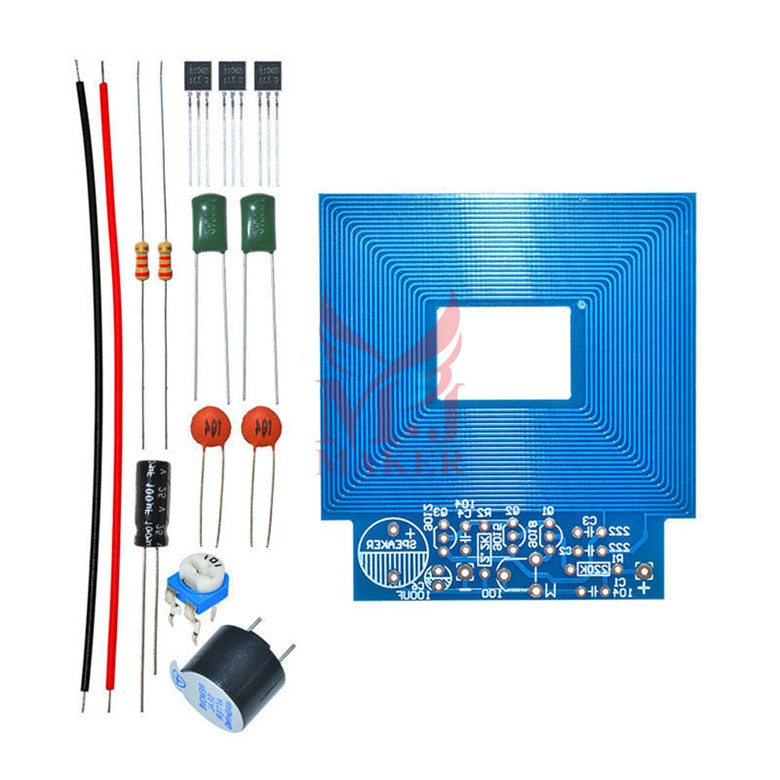

You can use this LC Metal detector non-contact metal induction detection module as a metal detector. When it approaches any metal, it makes a sound.
This is a module specifically designed to detect metal. The module operates by inducing currents in metal objects and responding when it occurs. A nice onboard buzzer signals when it detects something and an onboard potentiometer allow adjustment of sensitivity.
The power cables of the Metal detector non-contact metal induction detection module will need soldering on for the module to function, positive to the outside of the module and negative between the potentiometer and an electrolytic capacitor.
Features :
- “V+” ↔ Connect to power positive
- “V-” ↔ connect to power negative
- Adjust the potentiometer, let the modules work normally.
- Small and easy to use module.
- It comes with a Buzzer for metal detection indication.
Choose Quantity
Product Details
Supply Voltage: DC 3-5V Model Number: DIY Metal Detector Kit Parts Application: Computer Type: Logic ICs Operating Temperature: Electronic DIY Kit Dissipation Power: Metal Detector Board Package: well package Name: Metal detector Difficulty of welding machine: Easy Circuit board size: 86*61mm Operating current: Less than or equal to 40mA Standby current: Less than or equal to 5mA Detection depth: Less than or equal to 60mm Product type: Metal Detectors
