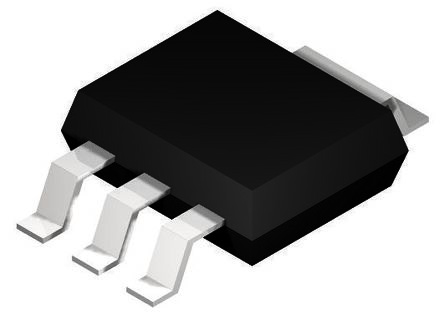

BT148W SCR Diode, 600V, 1A
BD 2.500
BT148W-600R - THYRISTOR, 1A, 600V, SOT-223
Current It av: 600mA
Gate Trigger Current Max, Igt: 200µA
Gate Trigger Voltage Max Vgt: 400mV
Holding Current Max Ih: 6mA
No. of Pins: 3
On State RMS Current IT (rms): 1A
Operating Temperature Max: 150 ° C
Peak Non Rep Surge Current Itsm 50Hz: 10A
Peak Repetitive Off-State Voltage, Vdrm: 600V
Thyristor Case Style: SOT-223
Current It av: 600mA
Gate Trigger Current Max, Igt: 200µA
Gate Trigger Voltage Max Vgt: 400mV
Holding Current Max Ih: 6mA
No. of Pins: 3
On State RMS Current IT (rms): 1A
Operating Temperature Max: 150 ° C
Peak Non Rep Surge Current Itsm 50Hz: 10A
Peak Repetitive Off-State Voltage, Vdrm: 600V
Thyristor Case Style: SOT-223
Choose Quantity
Product Details
| Manufacturer partno | BT148W-600R |
|---|---|
| RoHS | yes |
| Manufacturer | NXP, WeEn Semiconductors |
| Case | SOT223 |
| Mounting | SMD |
| Max. off-state voltage | 600V |
| Load current | 600mA |
| Max. load current | 1A, 10A |
| Kind of package | reel, tape |
| Type of semiconductor component | thyristor |
| Turn-on time | 2µs |
| Gate current | 50µA |
