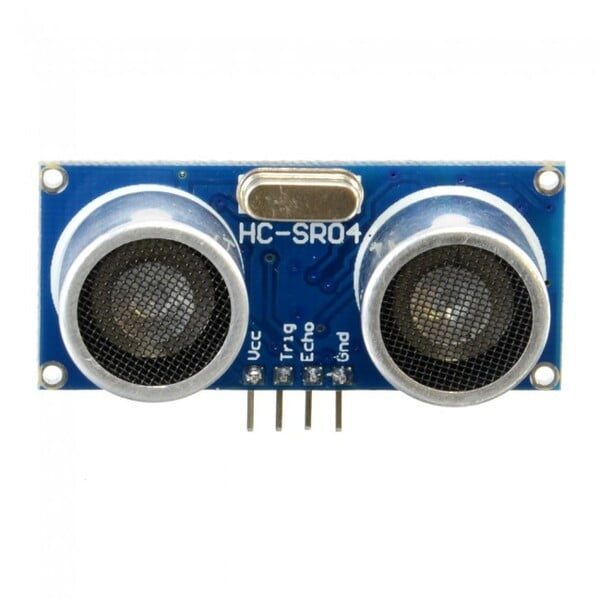

Ultrasonic Sensor, HC-SR04, HCSR04, Ultrasonic Distance Module
Non-returnable
6.500BD
Ultrasonic sensor, HC-SR04, HCSR04, ultrasonic distance module is designed to provide a reliable and efficient way to measure distance. With a high-quality sensor and a durable design, this component is perfect for use in various applications, including electronics, electrical systems, and telecommunications.
Choose Quantity
Product Details
The HC-SR04 Ultrasonic Range Sensor Features:
- Input Voltage: 5V
- Current Draw: 20mA (Max)
- Digital Output: 5V
- Digital Output: 0V (Low)
- Working Temperature: -15°C to 70°C
- Sensing Angle: 30° Cone
- Angle of Effect: 15° Cone
- Ultrasonic Frequency: 40kHz
- Range: 2cm - 400cm
- Dimensions
- Length: 43mm
- Width: 20mm
- Height (with transmitters): 15mm
- Centre screw hole distance: 40mm x 15mm
- Screw hole diameter: 1mm (M1)
- Transmitter diameter: 8mm
