Ultrasonic Sensor/Distance Measure - MADE IN USA
BD 24.500
Out of stock

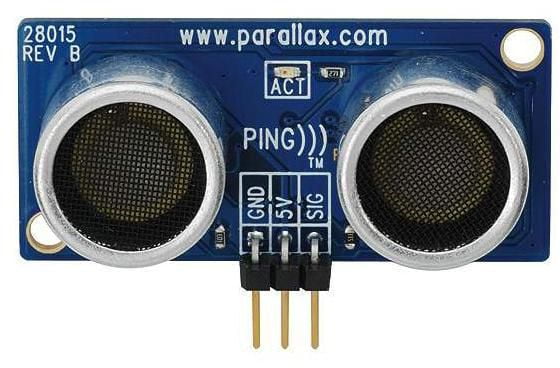

Our PING)))™ ultrasonic sensor provides an easy method of distance measurement. This sensor is perfect for any number of applications that require you to perform measurements between moving or stationary objects.
Interfacing to a microcontroller is a snap. A single I/O pin is used to trigger an ultrasonic burst (well above human hearing) and then "listen" for the echo return pulse. The sensor measures the time required for the echo return, and returns this value to the microcontroller as a variable-width pulse via the same I/O pin.
Key Features:
- Provides precise, non-contact distance measurements within a 3 cm to 3 m range
- Ultrasonic measurements work in any lighting condition, making this a good choice to supplement infrared object detectors
- Simple pulse in/pulse out communication requires just one I/O pin
- Burst indicator LED shows measurement in progress
- 3-pin header makes it easy to connect to a development board, directly or with an extension cable, no soldering required
Application Ideas:
- Security systems
- Interactive animated exhibits
- Parking assistant systems
- Robotic navigation
Product Details
Key Specifications
- Range: 2 cm to 3 meters (~.75" to 10’)
- Supply Voltage: 5V +/-10% (Absolute: Minimum 4.5V, Maximum 6V)
- Supply Current: 30 mA typical, 35 mA maximum
- 3-pin interface (power, ground, signal)
- 20 mA power consumption
- Narrow acceptance angle
- Simple pulse in / pulse out communication
- Indicator LED shows measurement in progress
- Input Trigger: positive TTL pulse, 2 µs minimum, 5 µs typical
- Echo Pulse: positive TTL pulse, 115 µs to 18.5 ms
- Echo Hold-off: 750 µs from fall of trigger pulse
- Burst Frequency: 40 kHz for 200 µs
- Size: 22 mm H x 46 mm W x 16 mm D (0.85 in x 1.8 in x 0.6 in)
