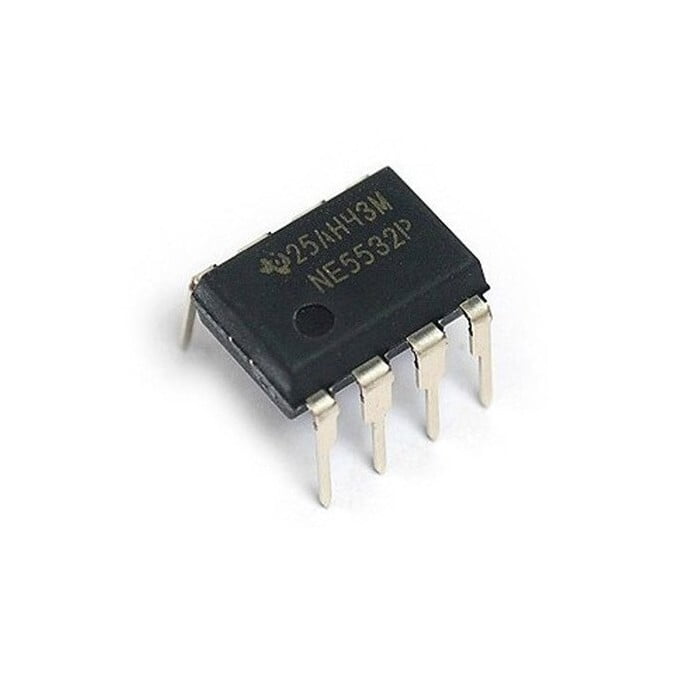

NE5532 (Dual Low Noise Op-Amp)
BD 1.500
Out of stock
The NE5532 is a Low Noise Audio amplifier IC form Texas Instruments. The IC features a very low noise with unity gain internal compensation. The gain of the IC is upto to 5000 and hence is commonly used in audio pre-amplifier circuits. Since the IC is highly immune to noise it is commonly preferred in sensitive audio signal conditioning designs.
The Op-Amp also has a low range operating voltage from ±3V to ±20V and hence can be used in wide variety of voltage ranges. The Op-Amp can also has wide bandwidth and slew rate and hence can be used in frequency selection, enabling you control bass or treble of a audio signals and play it in different modes like Rock, Jazz etc
Applications
- Pre-Amplifier Circuits
- Tone Control Circuit
- Audio Graphics equlizer
- Audio/Video broadcasting devices
- Pro Audio Mixers
2D-Model
Product Details
NE5532 Dual Op-Amp IC features and specifications
- Dual Low Noise Op-Amps in a single package
- Supply Voltage: ±3V to ±20V
- DC Voltage gain: 50000
- Unity gain bandwidth : 10MHz
- Common Mode rejection ratio (CMRR): 100dB
- Slew Rate: 9V/uS
- P-P Output Swing Voltage: 26V
- Available packages: TO-99, CDIP, DSBGA, SOIC, PDIP, DSBGA
