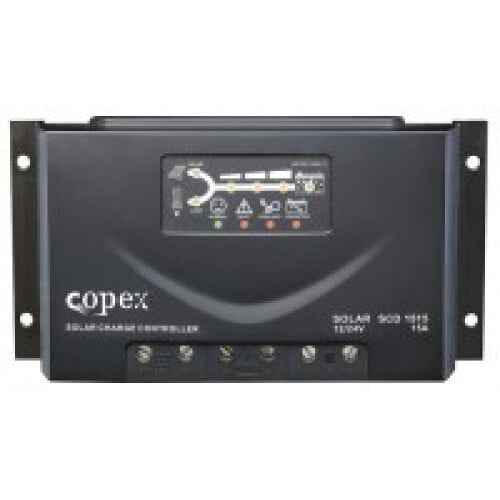

Solar Charge Controller 12/24V, 15A
BD 35.000
The SCD Series charge controller are universal charge controllers, which means they can be used with lead-acid batteries or GEL batteries without the need for complex configuration setting.
Features:
- Current-dependent load deactivation
- PWM-controlled constant-Voltage Charging
- Grounding on the plus side
- Integrated self test (start voltage 17.0V)
- Automatic load reactivation
- Microprocessor Control (CPU)
- LEDs to display the battery charge status
- LEDs (red/green) to display the function status
Electronic Protection Function:
- Prevention of back current into the module
- Deep-discharge protection
- Automatic electronic fuse
- Good electromagnetic compatibility
- Short-circuit protection of the load and the module
Choose Quantity
Product Details
Specification:
| Load current | 15A |
| System voltage | 12V/24V Auto work |
| Max. voltage of solar collector | 47 VDC |
| Enclosure protection class | IP 32 |
| Ambient temperature allowed | -250C…+500C |
| Temperature compensation | -4mV/K/Zelle |
| Thermal Protection | 850C |
