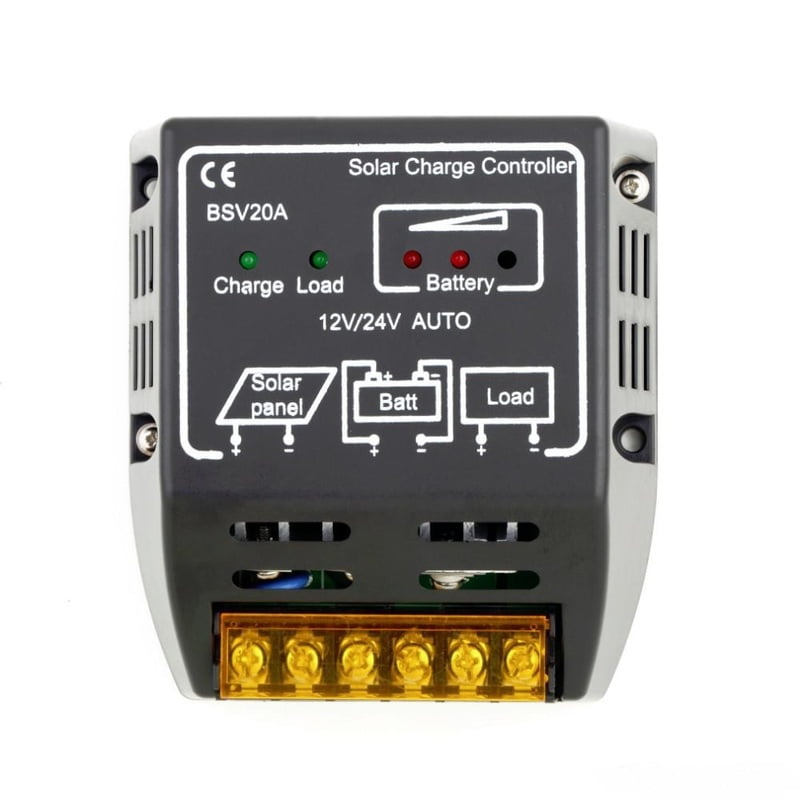

Solar Charge Controller 12/24V, 20A
BD 18.500
Automatically manage the working of solar panel and battery in solar system.
Overloading & short-circuit protection.
Reverse discharging & reverse-polarity protection.
Under-voltage and over-charging protection.
Protection from lightning strike.
Prolong the battery life cycle and keep the load work well. Easy to set up and operate.
Suitable for small solar energy system.
Overloading & short-circuit protection.
Reverse discharging & reverse-polarity protection.
Under-voltage and over-charging protection.
Protection from lightning strike.
Prolong the battery life cycle and keep the load work well. Easy to set up and operate.
Suitable for small solar energy system.
Choose Quantity
Product Details
Specification:
Voltage: DC 12V / 24V
Self-consuming: 10MA
Rated Charge Current: 20A
Rated Load Current: 20A
Over charge:
Protection: 14.4V / 28.8V
Floating charge: 13.5V / 27V
Recover: 13.2V / 26.4V
Over discharge:
Protection: 10.8V / 21.6V
Recover: 12.3V / 24.6V
Load over voltage:
Protection: 16.5V / 34V
Recover: 15V / 30V
Max open-circuit voltage of the solar panel: 25V / 36V
Operating temperature: -20°C-50°C
Color: Black
Item size: 10.2 * 9.5 * 3.8cm / 4 * 3.7 * 1.5in
Item weight: 120g / 4.1oz
Package Included:
1 X Solar Charge Controller
