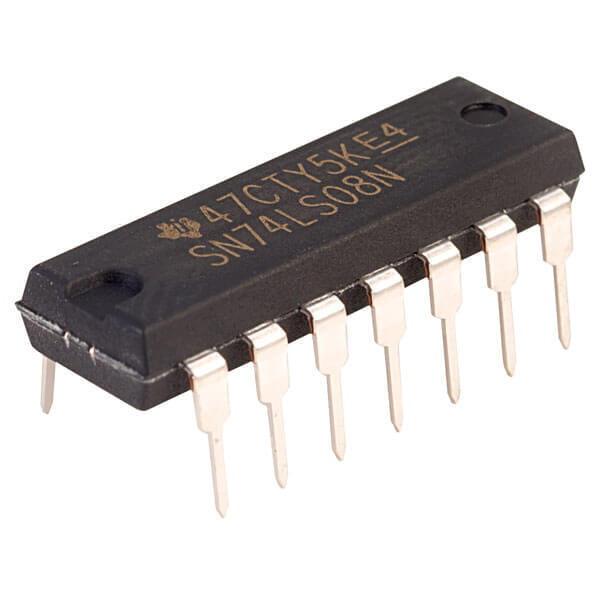

IC 7408 (QUAD 2-Input AND GATES)
7408 is Quad 2-Input AND Gate 14 Pin IC. The 74HC08 provides provides 4 independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. It utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Specification:
- Type: DIP Bipolar
- Voltage Rating: 2.0 to 6.0V
- Temperature Rating: 0 to 70Deg C
- Number of: 14 Pins
- Mounting: Through Hole
Features:- 4 AND gates in a 14-Pin DIP Package
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range
- Wide Operating Conditions
74LS08 is a 14 PIN IC. The chip is available in different packages and is chosen depending on requirement. The description for each pin is given below.
Pin Number | Description |
AND GATE 1 | |
1 | A1-INPUT1 of GATE 1 |
2 | B1-INPUT2 of GATE 1 |
3 | Y1-OUTPUT of GATE1 |
AND GATE 2 | |
4 | A2-INPUT1 of GATE 2 |
5 | B2-INPUT2 of GATE 2 |
6 | Y2-OUTPUT of GATE2 |
AND GATE 3 | |
9 | A3-INPUT1 of GATE 3 |
10 | B3-INPUT2 of GATE 3 |
8 | Y3-OUTPUT of GATE3 |
AND GATE 4 | |
12 | A4-INPUT1 of GATE 4 |
13 | B4-INPUT2 of GATE 4 |
11 | Y4-OUTPUT of GATE4 |
SHARED TERMINALS | |
7 | GND- Connected to ground |
14 | VCC-Connected to positive voltage to provide power to all four gates |
