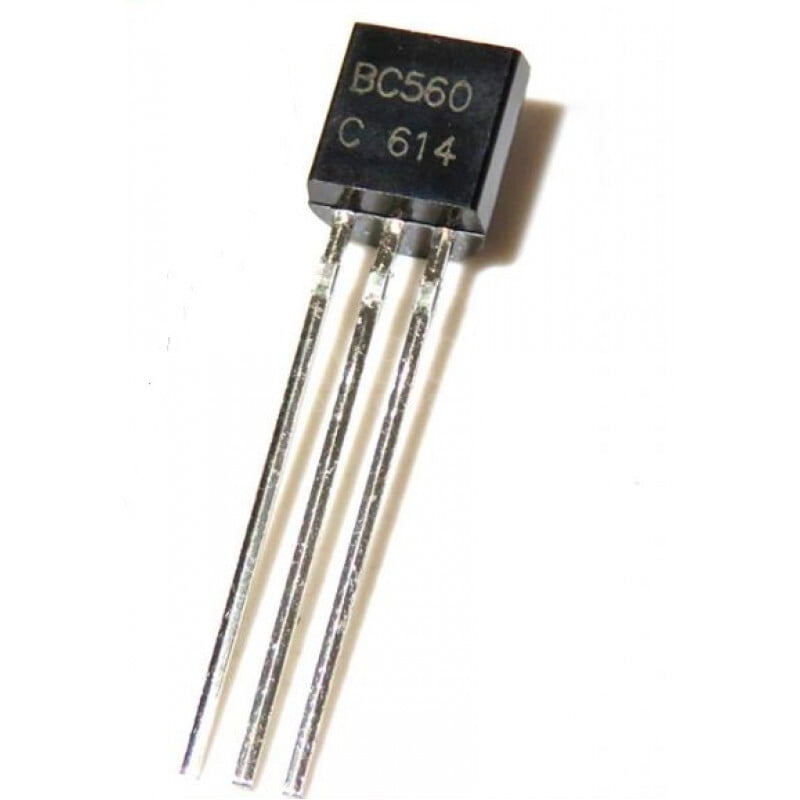

BC560 (PNP Low Noise Transistor)

Name: BC560 (PNP Low Noise Transistor)
SKU: BC/560/PNP
Price: 0.8 BHD
Availability: InStock

BD 0.800

Pin configuration (Pinout) of the BC560

The BC560 is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the collector, base, and emitter leads.
Here is an image showing the pin diagram of the this transistor.

Classification of h_FE

The BC560 transistor might have a current gain anywhere between 110 and 800. The gain of the BC560A will be in the range from 110 to 220, BC560B ranges from 200 to 450, BC560C ranges from 420 to 800.

Complementary NPN transistor

The complementary NPN transistor to the BC560 is the BC550.

SMD Equivalent

The SMD versions of the BC560 are available as the BC857 (SOT-23), BC857W (SOT-323), BC860 (SOT-23) and BC860W (SOT-323).

Replacement and equivalent transistor for the BC560

You can replace the BC560 with the BC556 or BC557

Choose Quantity

+ Add to Cart

Product Details

Characteristics of the BC560 bipolar transistor

Type - PNP
Collector-Emitter Voltage: -45 V
Collector-Base Voltage: -50 V
Emitter-Base Voltage: -5 V
Collector Current: -0.1 A
Collector Dissipation - 0.5 W
DC Current Gain (h_fe) - 110 to 800
Transition Frequency - 150 MHz
Noise Figure - 1 dB
Operating and Storage Junction Temperature Range -65 to +150 °C
Package - TO-92
