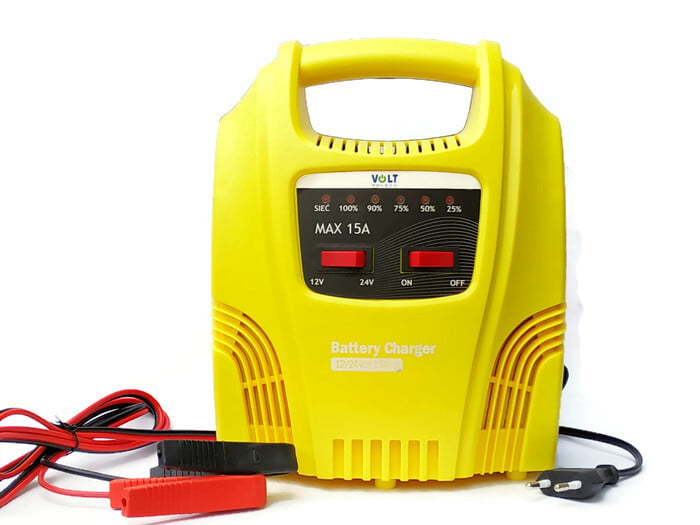

Charger for Rechargeable Batteries, 12/24v, 15A
Automatic charger for charging 12V 24V 15A batteries
Model MOBI - VOLT POLSKA
Automatic, mobile charger (rectifier) 15A designed for charging 12V and 24V lead-acid car batteries. Such batteries include, among others: maintenance-free VRLA batteries (AGM and GEL), acid batteries with liquid electrolyte or MF.
The charger enables charging batteries with a voltage of 12V and 24V
The most important features:
- Maximum current: 15A
- Output voltage: 12V / 24V
- Maximum battery capacity: 20 - 150 Ah
- Compact, mobile size
- Work indicators realized by means of LED diodes
- Convenient handle for carrying the device
- High reliability and efficiency
- Automatic charger - when fully charged it turns off and goes into voltage monitoring state
- It does not adversely affect the operation of the battery
Wide range of applications
The presented charger is used for charging 12V and 24V lead-acid batteries (capacity 20 - 150Ah ).
The rectifier can be used in:
- cars, vans and trucks
- motorcycles, scooters, quads
- boats, jet skis, yachts
- garden, construction and cleaning vehicles
- fire protection, security and emergency systems
- actuators, gate drivers
Supported batteries:
- car and gel batteries
- maintenance-free VRLA batteries: AGM and GEL
- acid batteries with liquid electrolyte and MF
- Stage 1 - assessment of the battery condition and its possible reactivation (with deeply discharged batteries)
- Stage 2 - main loading
- Stage 3 - monitoring the voltage on the battery (in the event of its drop, the device activates trickle charging, preventing the battery from discharging again)
Protection against reverse polarity, short circuit and overheating
The charger has a built-in PTTC (temperature) fuse, which protects against reverse polarity (switching + and - at the output), short circuit, overheating etc.
If a failure occurs and the fuse fails, it will return to full working order after approx. 2 minutes, when the device has time to cool down.
Technical parameters:- Maximum input voltage: ~ 230 VAC + - 5% (50Hz)
- Maximum output voltage: 12V / 24V DC
- Maximum charging current: 15A
- Maximum capacity of rechargeable batteries: 20 - 150 Ah
- Dimensions: 240 x 180 x 80 [mm]
- Manufacturer's symbol: 6PRMOBI15L
VOLT Polska Sp. z o. o. is a well-known and reliable brand on the uninterruptible power supply market in Poland and Europe. The company is engaged in the distribution and production of, among others: emergency power supplies, DC / DC converters, DC / AC converters, voltage converters and reducers, laptop power supplies, rectifiers and batteries.
