Digital Clamp Meter 600V AC/DC, 400A
UT200+ series handheld automatic range true RMS clamp meter, designed according to safety
standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection,
can meet high reliability and high safety operation requirements; It contains the basic functions of
electrical measurement, with high precision measurement, and expands the current frequency
(UT201+ / UT202+ only), high voltage frequency function, UT202+ has temperature measurement
function, UT203+ has DC current measurement function, and the new design makes it An excellent
measurement tool for electronic and electricians with superior performance
UT200+ series handheld automatic range true RMS clamp meter, designed according to safety
standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection,
can meet high reliability and high safety operation requirements; It contains the basic functions of
electrical measurement, with high precision measurement, and expands the current frequency
(UT201+ / UT202+ only), high voltage frequency function, UT202+ has temperature measurement
function, UT203+ has DC current measurement function, and the new design makes it An excellent
measurement tool for electronic and electricians with superior performance
Multifunctional Clamp Meter: can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, relative value, Max/Min value, continuity test, and diode test.
Measuring : 400A AC/DC current, 600V AC/DC voltage, 40MΩ resistance, 40mF capacitance, 10Hz~10MHz frequency, and 0.1%~99% duty cycle.
Data Hold & Max/Min: hold the measured data for conveniently checking or observing data.
Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.
Accessories: comes with a pair of test probes for convenient measurement, and a black zipper pouch for storing the clamp meter.
Power Supply: powered by 2*1.5V AAA battery (NOT included), convenient to operate.
Reliable & Functional: with good reliability and high , really practical for electrical equipment testing and maintenance.
Specifications:
Material: ABS
Safety Rating: CAT II 600V, CAT III 300V
Display Count: Max. 4000
Jaw Opening: 28mm
Auto off: 15 minutes
: Auto
AC Current : 40.00A/400.0A
AC Current Resolution: 0.01A/0.1A
DC Current : 40.00A/400.0A
DC Current Resolution: 0.01A/0.1A
AC Voltage : 4.000V/40.00V/400.0V/600V
AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
AC Voltage Frequency: 10Hz~60kHz
AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
DC Voltage : 400.0mV/4.000V/40.00V/400.0V/600V
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
Resistance : 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
Capacitance : 40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF/40.00mF
Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
Frequency : 10Hz~10MHz
Frequency Resolution: 0.01Hz~0.01MHz
Duty Cycle : 0.1%~99%
Duty Cycle Resolution: 0.1%
Continuity : 400.0Ω
Continuity Resolution: 0.1Ω
Diode : 4.000V
Diode Resolution: 0.001V
Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH), 40~50℃(humidity ≤ 45%RH)
Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
Altitude: 2,000 meters
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
Item Weight: 268g / 9.45oz
Package Weight: 359g / 12.66oz
Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in

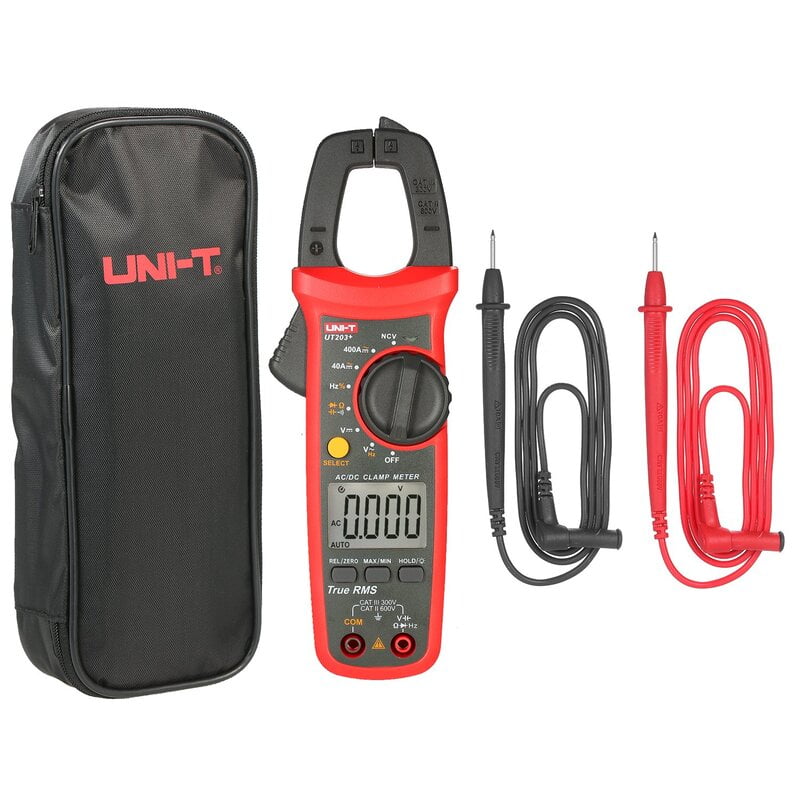

Package List:
1 * Clamp Meter
2 * Test
1 * Storage Bag
1 * Manual (English)
