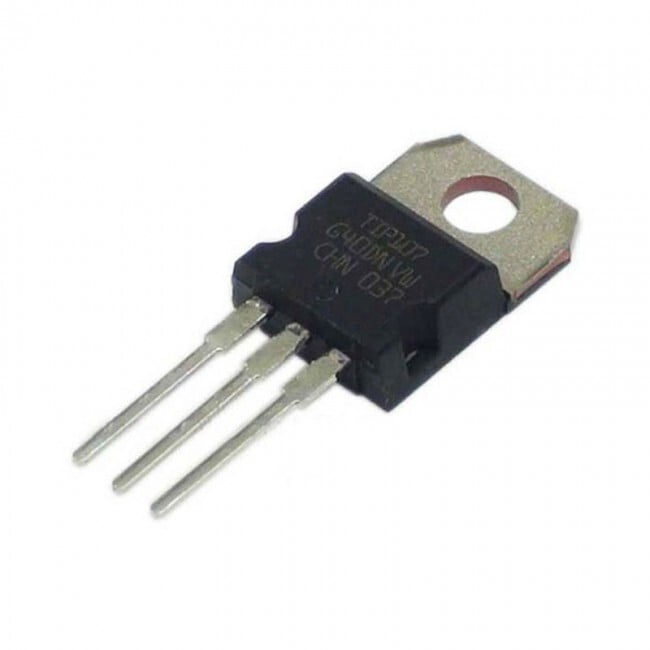

TIP107 (Transistor, Darlington, PNP, -100V, 80W, -8A)
BD 1.600
The TIP102 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration mounted in TO-220 plastic package. It is intented for use in power linear and switching applications. The complementary PNP type is TIP107.
Key Features
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Configuration | Single | |
| Lead Finish | Tin | |
| Maximum Collector Base Voltage | 100 V | |
| Maximum Collector Cut-off Current | 50 uA | |
| Maximum Collector Emitter Saturation Voltage | 2.5@80mA@8A V | |
| Maximum Collector Emitter Voltage | 100 V | |
| Maximum Emitter Base Voltage | 5 V | |
| Minimum DC Current Gain | 1000@3A@4V | |
| Mounting | Through Hole | |
| Peak DC Collector Current | 8 A | |
| Pin Count | 3 | |
| Product Dimensions | 10.4 x 4.6 x 9.15 mm | |
| Supplier Package | TO-220 | |
| Type | PNP |
