Digital Insulation Continuity Tester UT512 (Braid: UNI-T)
Non-returnable
115.000BD
Out of stock

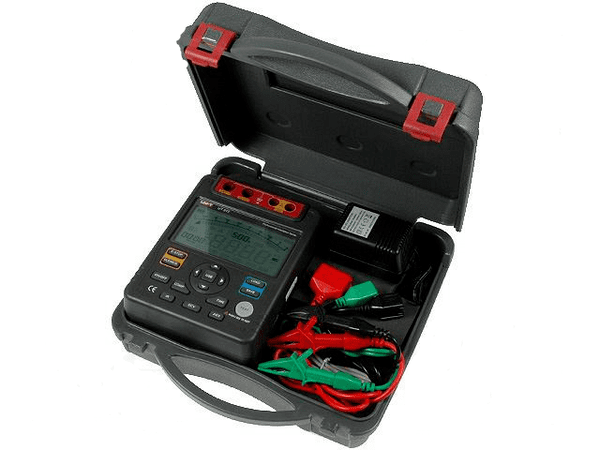

Insulation resistance tester UNI-T UT512
SPECIFICATION:
Insulation Resistance: 0.5MOhm ~100GOhm
- best accuracy: +/- (3%+5)
Testing Voltage: 500V / 1000V / 1500V / 2500V
- best accuracy: 0 ~ 20%
DC Voltage: 600V
- best accuracy: +/- (2%+5)
AC Voltage: 600V
- best accuracy: +/- (2%+5)
SPECIAL FUNCTIONS:
Auto Ranging
Short Circuit Current: < 1.8mA
Data Logging : 18
Sleep Mode
Polarization index (PI)
Dielectric Absorption (DAR)
Timer Around: 15 minutes
Compare
Battery Display
White Display Backlight
Over Range and High
Voltage Warning
USB
Max. Display: 9999 (123 x 58mm)
Analogue Bar Graph
GENERAL CHARACTERISTICS
Power: 1.5V Alkaline Battery(LR14)×8
Product Size: 202×155×94 mm
Product weight: 1.8 kg
Manufacturer: UNI-TREND
Product Details
Features:
1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Auto power off
6. 18-group data storage
7. Backlight
8. Auto current discharge and high-voltage output alarm
9. Time measurement mode, auto measure within 15 minutes
10. Low battery and over range indications
