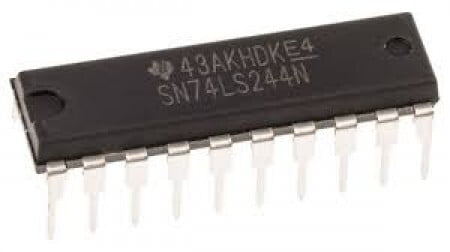

IC 74244 (8-Bit Buffer Chips)
BD 1.400
The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.
- Polarity: Non-Inverting, Packaging: Tube, Input Signal Type: Single-Ended , Number of Circuits: Dual , Number of Lines (Input / Output): 8 / 8 , Number of Output Lines: 8
- Output Type: 3-State , High Level Output Current: – 7.8 mA , Low Level Output Current: 7.8 mA , Propagation Delay Time: 165 ns @ 2 V or 33 ns @ 4.5 V or 28 ns @ 6 V
- Supply Voltage (Max): 6 V, Supply Voltage (Min): 2 V , Operating Supply Voltage: 5 V
- Maximum Operating Temperature: + 85 C , Minimum Operating Temperature: – 40 C
- Package / Case: PDIP-20, Logic Type: CMOS , Logic Family: HC , Number of Channels per Chip: Octal , RoHS: Yes
Choose Quantity
Product Details
Features:
- Inputs Tolerant Down to 2 V, Compatible With 3.3-V or 2.5-V Logic Inputs
- Maximum tpd of 15 ns at 5 V
- 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
- PNP Inputs Reduce DC Loading
- Hysteresis at Inputs Improves Noise Margins
