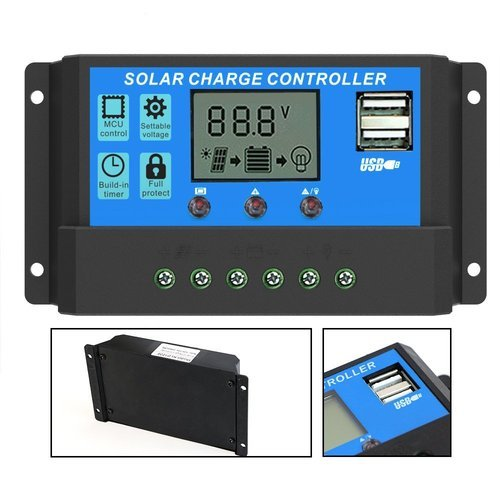

PWM Solar Charge Controller 12/24V, 30A
BD 25.000
30A PWM Solar Charge Controller 12V-24V LCD Dual USB 5V Auto work
1. Build-in industrial micro controller.
2. Large LCD display, all adjustable parameter.
3. full 4-stage PWM cargo management.
4.Built-in short circuit protection, open circuit protection, reverse protection, overload protection.
5. Dual mosfet Reverse current protection, low heat production.
Rated charge current: 30A
Rated discharge current: 30A
Max. solar input: < 50V
Float charge voltage: 13.7V
Shutoff voltage of discharge: 10.7V
Recovering voltage of discharge: 12.6V
Output power(dual USB): 5V/3A
Standby current: < 10mA
Operating temperature: -35'C to 60'C
System voltage: 12V/24V (Auto)
Battery Option (GEL,LEAD-ACID,FLOODED,Lithium-ion LiFePO4)
Adjustable charge and discharge parameters
Integrated 3 steps PWM charging management
Safe protections: Short circuit/open circuit protection, overcurrent protection, reverse polarity protection
Dual MOS anti-backflow circuit, low heat dissipation
Can charge for cell phones or tablet PCs via USB port
1. Build-in industrial micro controller.
2. Large LCD display, all adjustable parameter.
3. full 4-stage PWM cargo management.
4.Built-in short circuit protection, open circuit protection, reverse protection, overload protection.
5. Dual mosfet Reverse current protection, low heat production.
Rated charge current: 30A
Rated discharge current: 30A
Max. solar input: < 50V
Float charge voltage: 13.7V
Shutoff voltage of discharge: 10.7V
Recovering voltage of discharge: 12.6V
Output power(dual USB): 5V/3A
Standby current: < 10mA
Operating temperature: -35'C to 60'C
System voltage: 12V/24V (Auto)
Battery Option (GEL,LEAD-ACID,FLOODED,Lithium-ion LiFePO4)
Adjustable charge and discharge parameters
Integrated 3 steps PWM charging management
Safe protections: Short circuit/open circuit protection, overcurrent protection, reverse polarity protection
Dual MOS anti-backflow circuit, low heat dissipation
Can charge for cell phones or tablet PCs via USB port
Choose Quantity
Product Details
Features:
1. Automatically manage the working of solar panel and battery in solar system.
2. Easy to set up and operate.
3.Solar Charge Controller Suitable for solar power system, solar street lamp, smart home, solar light box, intelligent irrigation,camping lantern.etc.
4. Protection from lightning strike and high speed charging.
5. Prolong the battery life cycle and keep the load work well.
6. Overloading and short-circuit protection.
7. Suitable for small solar energy system.
Specifications:
- Batt voltage: 12V/24V auto
- Charge current: 30A
- Discharge current: 30A
- Max Solar input: <50V
- Equalization: B01 sealed 14.4V
- B02 Gel 14.2V
- B03 flood 14.6V
- Float charge: 13.7V(defaul,adjustable)
- Discharge stop: 10.7V(defaul,adjustable)
- Discharge reconnect: 12.6V(defaul,adjustable)
- USB output: 5V/3A
- Self-consume: <10mA
- Operating temperature: -35~+60 degree C
Package Include:
1X 30A Solar Charge Contorller
1X English User Manual
Note:
<1>Please keep it in cool and well ventilated place to maintain good heat dissipation.
<2>Make sure your battery has enough voltage for the controller to recognize the battery before first installation.
1. Automatically manage the working of solar panel and battery in solar system.
2. Easy to set up and operate.
3.Solar Charge Controller Suitable for solar power system, solar street lamp, smart home, solar light box, intelligent irrigation,camping lantern.etc.
4. Protection from lightning strike and high speed charging.
5. Prolong the battery life cycle and keep the load work well.
6. Overloading and short-circuit protection.
7. Suitable for small solar energy system.
Specifications:
- Batt voltage: 12V/24V auto
- Charge current: 30A
- Discharge current: 30A
- Max Solar input: <50V
- Equalization: B01 sealed 14.4V
- B02 Gel 14.2V
- B03 flood 14.6V
- Float charge: 13.7V(defaul,adjustable)
- Discharge stop: 10.7V(defaul,adjustable)
- Discharge reconnect: 12.6V(defaul,adjustable)
- USB output: 5V/3A
- Self-consume: <10mA
- Operating temperature: -35~+60 degree C
Package Include:
1X 30A Solar Charge Contorller
1X English User Manual
Note:
<1>Please keep it in cool and well ventilated place to maintain good heat dissipation.
<2>Make sure your battery has enough voltage for the controller to recognize the battery before first installation.
