Arduino Camera Module

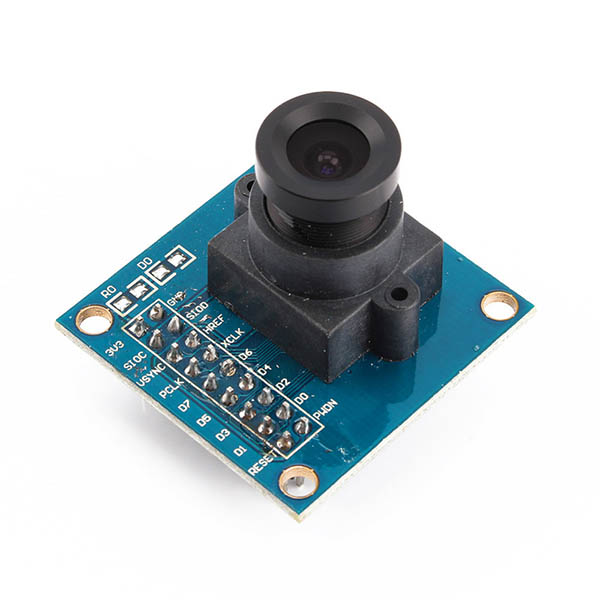

OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE is a low-cost image sensor, DSP that can operate at a maximum of 30 fps and 640 x 480 (“VGA”) resolutions, equivalent to 0.3 Megapixels. The captured image can be pre-processed by the DSP before sending it out. This pre-processing can be configured via the Serial Camera Control Bus (SCCB). OmniVision OV7670 CMOS VGA (640×480) CAMERA-CHIP Sensor with OmniPixel technology 3.3V DC Input Voltage. working Temp. 0-50 Degree Celsius All Glass Lenses, Lens(including seat) is Magnesium Alloy material.
Focal length of lens is 3.6 mm 650 nm Bands Black FR-4 PCB, Quality Heavy Gold Plate, effectively prevent the PCB from light leak issues and prevents shadow in images 2×10 0.1″ output connector for convenient insertion into Prototype Board, Bread Board, MCU Onboard Connectors This Camera module is very powerful and easy-to-interface with 8/16/32 bit Micro-controller. OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE will provide vision to your small embedded systems and will be useful for plenty of application in Robotics.
Image Processing, Simple Machine Vision, Object Detection, Color detection etc. 2×10 0.1″ Output Connector will be easy to plug into any prototype board or breadboard which will make your project/product implementation fast. Technical parameters: High sensitivity for low-light operation Low operating voltage for embedded portable apps Lens shading correction Flicker (50/60 Hz) auto detection Saturation level auto adjust (UV adjust) Edge enhancement level auto adjust.
Specifications and Features of OV 640 x 480 VGA Image Sensor Module:
- Its model is OV7670 VGA CMOS Camera.
- Its operating power is 60mW/15fps
- Its sleeping mode is <20uA.
- Its lens size is 1/6”.
- Its maximum frame rate is 30fps VGA.
- Its sensitivity is 1.3V.
- Its dynamic range is 52 dB.
- Its electronic exposure is 1 to 510 row.
- Its pixel coverage is 3.6um x 3.6um.
- Its duck current is 12mV/s at 6-degree centigrade.
- Its PCB color is Blue.
- It supports VGA and CIF.
- CIF to 40 x 30 format.
- It has auto image control of AEC, AGC, AWB, ABF, ABLC.
- It has the feature of color saturation, hue gamma, sharpness, and anti-blooming.
- It contains ISP includes noise reduction and defect correction.
- It also supports image scaling and lens shading correction.
- Its flicker 50/60 Hz auto-detection.
- It contains an auto adjustment of color saturation level.
- It contains an auto-adjust of edge enhancement level.
- It has an auto-adjust feature of the de-noise level.
- It has a high sensitivity for low light applications.
- It is a low level suitable for embedded applications.
- It has a standard sccb interface.
- It is compatible with the i2C interface.
