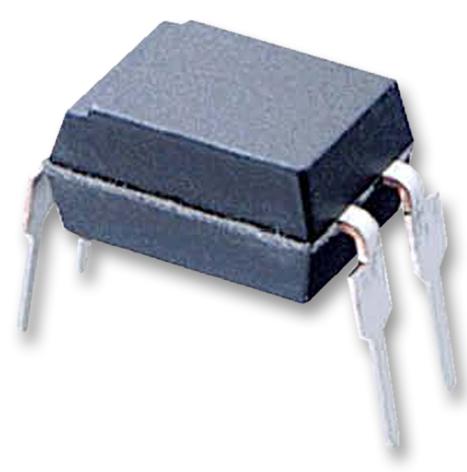

FOD817B Photocoupler IC (C)

FOD817B Photocoupler IC (C)

Non-returnable
BD 1.500
The FOD814 consists of two gallium arsenide infraredemitting diodes, connected in inverse parallel, driving  asilicon phototransistor output in a 4-pin dual in-linepackage. The FOD817 Series consists of a galliumarsenide infrared emitting diode driving a siliconphototransistor in a 4-pin dual  in-line package.

FEATURES

Applicable to Pb-free IR reflow soldering Compact 4-pin package Current transfer ratio in selected groups: FOD817D: 300-600% C-UL, UL and VDE approved High input-output isolation voltage of 5000 Vrms


APPLICATIONS
FOD817 Series Power supply regulators Digital logic inputs Microprocessor inputs
ABSOLUTE MAXIMUM RATINGS (TA = 25°C Unless otherwise specified.)

Parameter TOTAL DEVICE Storage Temperature Operating Temperature Lead Solder Temperature Total Device Power Dissipation EMITTER Continuous Forward Current Reverse Voltage LED Power Dissipation Derate above 25°C DETECTOR Collector-Emitter Voltage Emitter-Collector Voltage Continuous Collector Current Detector Power Dissipation Derate above 25°C Symbol TSTG TOPR TSOL VR PD VCEO VECO IC PD Value +100 260 for 10 sec Units V mW mW/°C mA mW mW/°C
