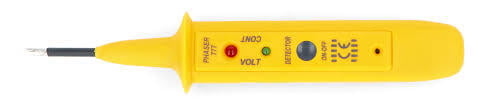

Electrical Tester, max. 500VAC, max. 60VDC
BD 8.500
FAZER 777 DETECTOR is designed to perform basic tests of 220V / 380V electrical installations, car installations and other electrical installations. Fazer 777 can also check the correct operation of electrical devices. In electronics, Fazer 777 allows, among others, to detect 0/1 and allows you to check whether the resistor, capacitor, diode and transistor are not damaged. The irreplaceable function of the Fazer 777 is to detect alternating voltage ("~") without touching the object. Fazer allows to detect wires running in walls up to 50 cm deep as well as detect "PHASE" wherever direct contact is impossible. It is also easy to detect wire breakage in the insulation. Adjusting the detection sensitivity allows you to detect voltage from a distance of 0.3 cm to 50 cm, depending on external conditions. The device does not have a power switch. Fazer only consumes current at the time of measurement. The precise, refined design of the Fazer processor system allows for very low energy consumption. The LR44 alkaline batteries provide over 10,000 readings. Fazer cannot be dismantled.
SINGLE-POLE MULTIFUNCTIONAL ELECTRIC TESTER WITH NON-CONTACT WIRING DETECTION
- Detection of live cables (non-contact) from 0.3 cm to 50 cm
- AC phase / zero detection max 500V
- Conduction continuity testing ~ 1MOhm
- Detection of DC voltages max 60V
Choose Quantity
Product Details
Basic operating modes:
- PHASE - The Fazer 777 uses the fitter's body as an electrical mass
- CONT - Fazer 777 uses the conductivity of the skin
- VOLT - Fazer 777 uses the conductivity of the skin
- DETECTION - keep the DETECTION button pressed all the time during the measurement
- contactless voltage detector
- detects discontinuities and short circuits in cables
- polarization indicator
- AC/DC voltage indicator
- detects line wire (acoustic and optical indication)
- tests logic state of TTL circuits
- Gross weight: 51.6 g
