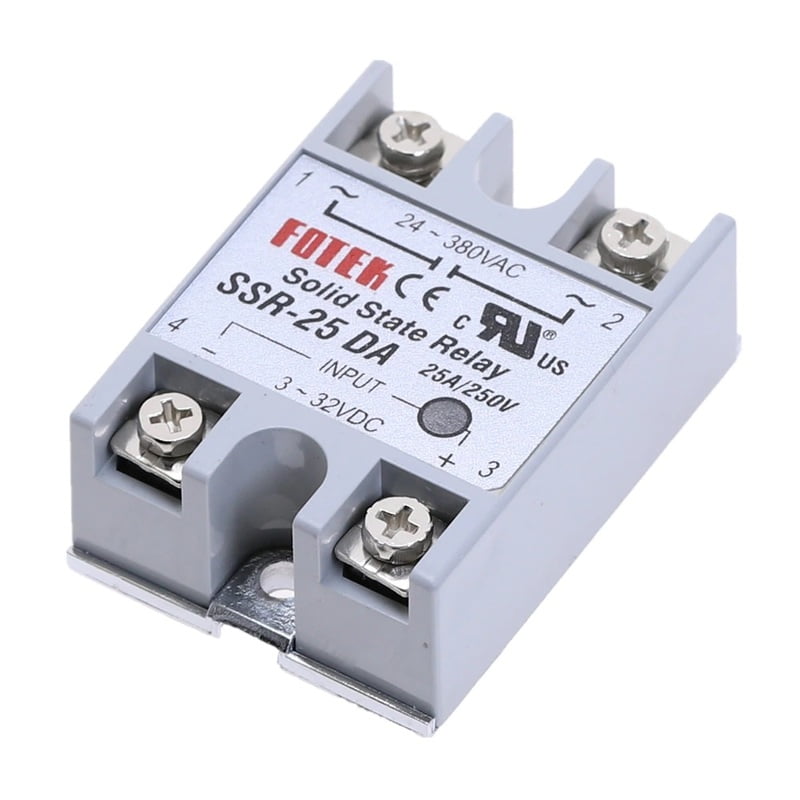

Solid State Relay SSR-25DA, 25A, 3-32V DC TO 24-380V AC
BD 8.500
Solid State Relay Module SSR-25DA 25 A, 250 V 3 - 32 V DC input 24 - 380 VAC output
Features:
AC 24V-380V Temperature Control Solid State Relay Output 25A SSR-25DA
Single phrase feature, this solid state relay is ideal for automatic process control applications, a component need for temperature controller and other machinery control system.
High reliabily, compact size, a large part of temperature controller and other machinery control system.
Specifciations:
Type: SSR-25DA
Charging current: 25A Current (if it is more than 10A , please improve heat dissipation)
Charging voltage: 3-32VDC
Control voltage: 24-380VAC
Control current : DC3 - 25 mA
Over voltage: ≤ 1.5 V
Off leakage current: ≤ 2mA
On time: ≤ 10mS
Dielectric strength: 2500 VAC
Insulation resistance: 1000M / 500VDC
Ambient temperature: -30 ~ + 75 ℃
Mounting methods: bolting
Working instructions: LED
Size: 6.25 x 4 x 2.3 cm /2.46 x 1.57 x 0.91inch
Quantity: 1 PC
AC 24V-380V Temperature Control Solid State Relay Output 25A SSR-25DA
Single phrase feature, this solid state relay is ideal for automatic process control applications, a component need for temperature controller and other machinery control system.
High reliabily, compact size, a large part of temperature controller and other machinery control system.
Specifciations:
Type: SSR-25DA
Charging current: 25A Current (if it is more than 10A , please improve heat dissipation)
Charging voltage: 3-32VDC
Control voltage: 24-380VAC
Control current : DC3 - 25 mA
Over voltage: ≤ 1.5 V
Off leakage current: ≤ 2mA
On time: ≤ 10mS
Dielectric strength: 2500 VAC
Insulation resistance: 1000M / 500VDC
Ambient temperature: -30 ~ + 75 ℃
Mounting methods: bolting
Working instructions: LED
Size: 6.25 x 4 x 2.3 cm /2.46 x 1.57 x 0.91inch
Quantity: 1 PC
Choose Quantity
Product Details
Application:
SSR series Solid state relay with flame retardant plastic shell, composite cast epoxy, wire entry Screw terminals with high structural strength, impact force, vibration resistance, small current unit can be convenient and computer terminals and a variety plant and programmable digital circuit interface automation automation, widely used in the control of petrochemical, food, machinery, textile machines, tools, plastic packaging machines, fitness, entertainment possibilities. Especially suitable for corrosion, moisture, dust and other harsh environments, and the occasion, AC frequent switching contactor is upgraded alternative. Package Includes:
2 x SSR-40DA Solid State Relay
SSR series Solid state relay with flame retardant plastic shell, composite cast epoxy, wire entry Screw terminals with high structural strength, impact force, vibration resistance, small current unit can be convenient and computer terminals and a variety plant and programmable digital circuit interface automation automation, widely used in the control of petrochemical, food, machinery, textile machines, tools, plastic packaging machines, fitness, entertainment possibilities. Especially suitable for corrosion, moisture, dust and other harsh environments, and the occasion, AC frequent switching contactor is upgraded alternative. Package Includes:
2 x SSR-40DA Solid State Relay
