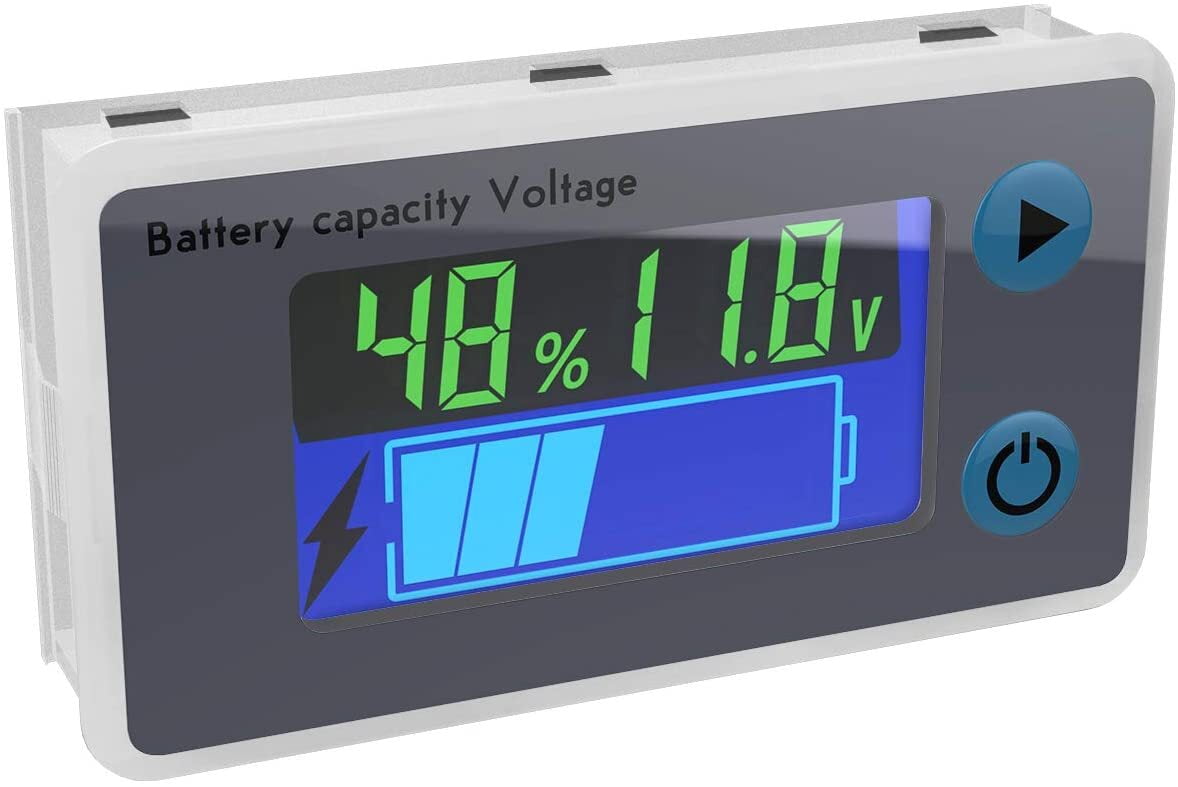

Universal Battery Capacity Voltmeter Tester, 10-100VDC
BD 8.000
This product is a universal instrument, the color LCD display, low power consumption,
Long-life switch, can display the battery voltage, can be used in a variety of lighting conditions.
Features:
1. The patented product, production of neutral packaging, with single
surface dust-proof , with full protective cover.
2. Color liquid crystal material, clear clear display, display the soft night.
3. To customize the battery type, suitable for lead acid, lithium ion, lithium iron
Phosphate, metal hydride battery.
4. To display the percentage of remaining battery power, voltage, temperature value.
5. The wide input voltage of 10 ~ 100V, reverse protection.
6. The product may fall asleep after 10 seconds.
7. Red low power mark flashes to remind.
8. Installation is simple, with a buckle, no screws.
9. The open programming mode
Long-life switch, can display the battery voltage, can be used in a variety of lighting conditions.
Features:
1. The patented product, production of neutral packaging, with single
surface dust-proof , with full protective cover.
2. Color liquid crystal material, clear clear display, display the soft night.
3. To customize the battery type, suitable for lead acid, lithium ion, lithium iron
Phosphate, metal hydride battery.
4. To display the percentage of remaining battery power, voltage, temperature value.
5. The wide input voltage of 10 ~ 100V, reverse protection.
6. The product may fall asleep after 10 seconds.
7. Red low power mark flashes to remind.
8. Installation is simple, with a buckle, no screws.
9. The open programming mode
Quantity
Product Details
Parameter: Product
size: 61.5mm * 33.5mm * 13.5mm
Installation size: 58.5mm * 28.5mm
Display size: 36mm * 19.5mm
Operating voltage: 10V-100V
Waste power : 5-6mA (LED on)
Voltage accuracy: ± 0.1 (typical), ± 0.5 (Max)
Sleep power: 6-12uA (20V)
Working temperature: -10 ~ 55 °
Instruction:
1. PH2.0 terminal products supporting the use of wire, connected to the face of the circuit board must plug.
2. External NTC temperature sensor, please put the sensor to measure the room temperature, do not
squeeze the sensor (selective assembly).
3. Red line to positive terminal, black line to negative terminal.
4. After power on the instrument, which shows the battery power percentage, voltage value,
and analog battery symbols.
5. Press the button to turn off the instrument. In closed mode, you can wake up the instrument by pressing
No button.
6. Click the button, you can change the display of voltage value and temperature value.
7. The battery symbols on the display interface, from right to left, are 7 display boxes representing
the Pool Power from low to high.
8. The voltage on the display interface is measured in real time, and the voltage value is displayed on
10-100V.
9. The percentage on the display interface is the percentage of the remaining battery power
10. When the battery is connected to the charger or discharging the high current load, the
Settings display will fluctuate
11. Lightning strike red flashes alarm when battery is low
12. If the battery specification is special, you can enter the set mode 3-and reset the upper and lower limits of the
measured voltage of the battery.
size: 61.5mm * 33.5mm * 13.5mm
Installation size: 58.5mm * 28.5mm
Display size: 36mm * 19.5mm
Operating voltage: 10V-100V
Waste power : 5-6mA (LED on)
Voltage accuracy: ± 0.1 (typical), ± 0.5 (Max)
Sleep power: 6-12uA (20V)
Working temperature: -10 ~ 55 °
Instruction:
1. PH2.0 terminal products supporting the use of wire, connected to the face of the circuit board must plug.
2. External NTC temperature sensor, please put the sensor to measure the room temperature, do not
squeeze the sensor (selective assembly).
3. Red line to positive terminal, black line to negative terminal.
4. After power on the instrument, which shows the battery power percentage, voltage value,
and analog battery symbols.
5. Press the button to turn off the instrument. In closed mode, you can wake up the instrument by pressing
No button.
6. Click the button, you can change the display of voltage value and temperature value.
7. The battery symbols on the display interface, from right to left, are 7 display boxes representing
the Pool Power from low to high.
8. The voltage on the display interface is measured in real time, and the voltage value is displayed on
10-100V.
9. The percentage on the display interface is the percentage of the remaining battery power
10. When the battery is connected to the charger or discharging the high current load, the
Settings display will fluctuate
11. Lightning strike red flashes alarm when battery is low
12. If the battery specification is special, you can enter the set mode 3-and reset the upper and lower limits of the
measured voltage of the battery.
