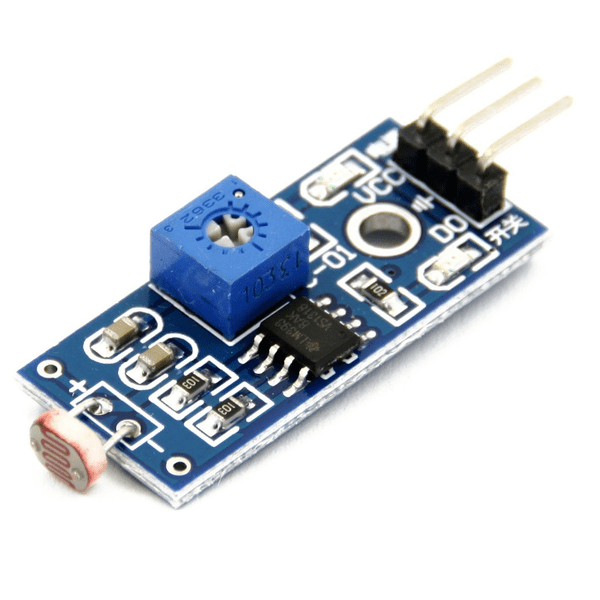

LDR Sensor Module, Photoresistor
This LM393 Photosensitive Light-Dependent Control Sensor Module has a high quality using a voltage LM393 comparator with a mounting screw hole. Easy to install using the sensitive type photosensitive resistance sensor the comparator output signal clean waveform is good. Driving ability than 15ma with adjustable potentiometer can adjust the brightness of the light detected. Working voltage is 3. 3V to 5v. Where output is digital switch output. Since this module is sensitive to the light, usually used for detecting the ambient brightness and light intensity.
When there is no light or the light intensity cannot reach the value, DO output is high level. When light intensity over than the value, the module DO output is low level. The module digital output DO can be directly connected to the microcontroller, use microcontroller detects high or low level, so that can detect the environmental light intensity change.
You can use this board digital output DO port drive relay module directly(our store on sale these relay modules), and can also use as a photoelectric switch. The analog output ao connects with ad module and it can get more precise light intensity value through the ad-converter.
Using a wide voltage LM393 comparator
With a mouting screw hole, easy to install
Using the sensitive type photosensitive resistance sensor
The comparator output signal clean waveform is good, driving ability, than 15mA With adjustable potentiometer can adjust the brightness of the light detected
Working voltage: 3.3V-5V
Output: DO digital switch output (0 and 1), AO analog voltage output.
This module is sensitive to the light, Usually used for detecting the ambient brightness and light intensity.
When there is no light or the light intensity can not reach the value,DO output is high level.when light intensity over than the value, the module DO output is low level.
The module digital output DO can be directly connected with the microcontroller,use microcontroller detect high or low level, so that can detect the environmental light intensity change.
Can use this board digital output DO port drive relay module directly(our store on sale these relay modules), can also use as a photoelectric switch. The analog output AO connects with AD module, and it can get more precise light intensity value through the AD converter.
