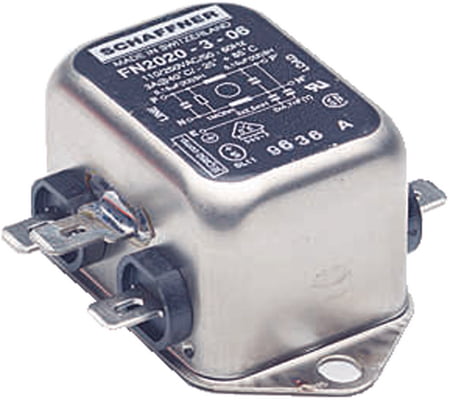

EMI Power Line Filter, 10A 250VAC, 0Hz to 400Hz
BD 16.500
FN2020 Series
FN2020 filters are designed for easy and fast chassis mounting and are also avaialble as B versions, the Medical option and A version the Safety option. All FN2020 filters provide a general purpose attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.
Choose Quantity
Product Details
Specifications
Still not found what you are looking for?
Length
46.6mm
Depth
71mm
Operating Frequency
400Hz
Mounting Type
Chassis Mount
Brand
Schaffner
Resistance
1MΩ
Dimensions
46.6 x 71 x 29.3mm
Capacitance
4.7 nF, 150 nF
Maximum Current Rating
16A
Maximum Operating Temperature
+100°C
Minimum Operating Temperature
-25°C
Termination Style
Tab
Series
FN2020
Height
29.3mm
Number of Stages
Single Stage
Leakage Current
0.74 mA
Maximum Voltage Rating
250 V ac
Inductance
650 μH
