IC 7427 (Triple 3-Input NOR Gate)
BD 1.400

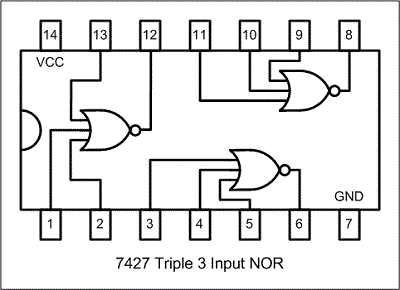

The 7427 IC contains three independent 3-Input NOR gates. Pins 7 and 14 supply power to all three gates within the chip. NOR gates, also known as inclusive NOR respond only if ALL of the input pins are logical zero. If any of the three inputs receives a high signal the state of the output pin will be logical zero (LOW).
Features
Three 3-Input NOR Gates
Outputs Directly Interface to CMOS, NMOS and TTL
Large Operating Voltage Range
Wide Operating Conditions
Not Recommended for New Designs Use 74LS27
Choose Quantity
Product Details
Absolute Maximum Ratings:
Supply Voltage: 7V
Input Voltage: 5.5V
Operating Free Air Temperature: 0oC to +70oC
Storage Temperature Range: -65oC to +150oC
Supply Voltage: 7V
Input Voltage: 5.5V
Operating Free Air Temperature: 0oC to +70oC
Storage Temperature Range: -65oC to +150oC
