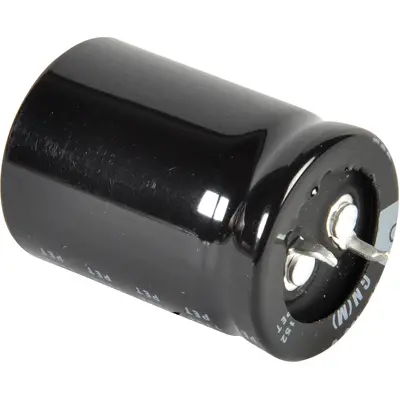

100uF, 450v Capacitor 23X30mm, NICHICON
Nichicon GU Series Snap-In Aluminium Electrolytic Capacitors can withstand 3000 hours of rated ripple current application. The snap-in terminal GU Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 16 to 450V. These high performance capacitors have a wide temperature range which is ideal for applications such as uninterruptible power supplies, electric pump motors, and AC servomotors.
Voltage 450V dc
Technology Electrolytic
Mounting Type Through Hole
Brand Nichicon
Dimensions 25 (Dia.) x 30mm
Capacitance 100µF
Diameter 23mm
Maximum Operating Temperature +105°C
Minimum Operating Temperature -25°C
Series GU
Height 30mm
Ripple Current 690mA
Lead Pitch 10mm
Leakage Current 0.63 mA
Lifetime 3000h
Tolerance ±20%
