PRE ORDER Bearing Heater ELDC Series Rotating Arm Induction Gear Motor

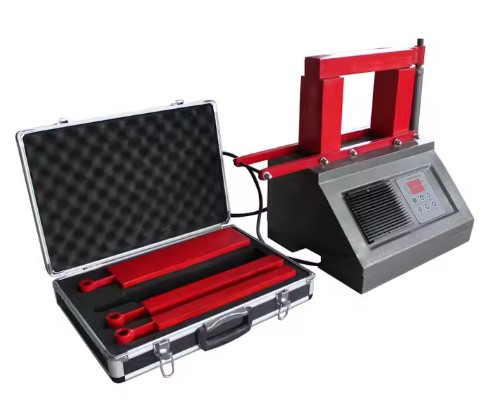

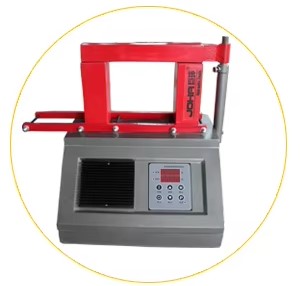

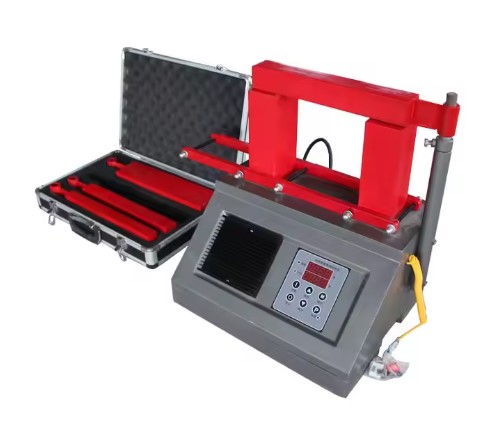

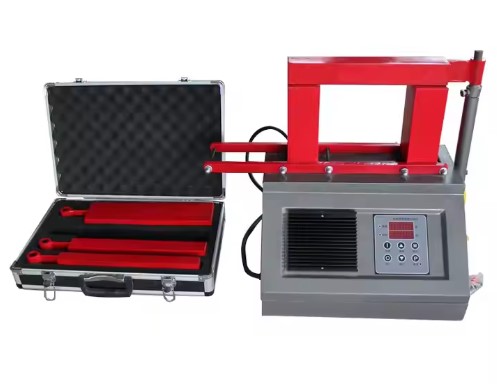

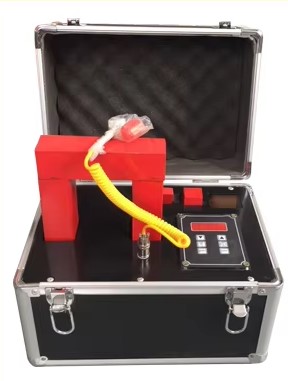

Introducing the ELDC Series Microcomputer Bearing Heater – Precision Meets Intelligence
Engineered as a significant upgrade to the DC series, the ELDC series redefines bearing heating with cutting-edge microcomputer technology. At its core lies an advanced chip-based control system, ensuring intelligent operation and consistent performance even in demanding environments.
Designed for both efficiency and safety, the ELDC series features a fully automated heating process. With capabilities such as soft start and stop, dynamic output power adjustment, and real-time monitoring, it delivers optimal heating while extending bearing life.
The system also includes built-in diagnostics and self-checking functions, enabling automatic detection of faults and protective responses to abnormal conditions. Its robust construction and smart technology combine to provide a reliable, maintenance-friendly solution for continuous industrial use.
Whether you're seeking precision, safety, or durability, the ELDC series stands out as a next-generation solution for bearing induction heating.
Type
| ELDC-1
| ELDC-2
| ELDC-3
| ELDC-4
| ELDC-5
| ELDC-6
| ELDC-7
| ELDC-8
|
Plant capacity | 1KVA
| 3.6KVA | 3.6KVA | 8KVA
| 12KVA | 24KVA | 40KVA
| 95KVA |
Voltage
| 220V | 220V | 220V
| 380V | 380V | 380V
| 380V | 380V |
Rotating arm
| - | - | Have
| Have | Have | Have
| - | - |
Max weight bearing(kg)
| 15 | 35 | 35
| 125 | 250 | 350
| 1250 | As required |
Bearing bore diameter(mm) | 20-100
| 30-160 | 30-160 | 50-250
| 60-400 | 80-600 | 85-800
| 145-1200 |
Max bearing outside diameter(mm)
| 150 | 340 | 340
| 480 | 560 | 700
| 1400 | 2500 |
Max bearing width(mm)
| 60 | 150 | 150
| 200 | 265 | 265
| 420 | 700 |
Max temperature
| 300℃
| |||||||
Magnetic probe
| Have
| |||||||
Temperature display
| Have
| |||||||
Time Range
| 0-99min
| |||||||
Time digital display
| Have
| |||||||
Auditory tone cues
| Have
| |||||||
Heat preservation function
| Have
| |||||||
Power adjustment
| - | - | - | Automatic
| Automatic | Automatic | Automatic
| Automatic |
Autodegauss
| Automatic
| |||||||
Dimensions (cm)
| 32*22.5 | 34*29 | 37*29
| 63*36.5 | 95*64 | 95*64
| 150*60 | 230*100 |
*27.5
| *31 | *38 | *47 | *100
| *100 | *147 | *100 | |
Heating rod(mm)
| 14,30,40 | 20,30, 40,50, 60
| 20,30 40,50, 60 | 40,50,70 | 40,60,80 | 60,80,100 | 80,100,150
| 100,150 200, 240 |
Heating rod size
| Customizable
| |||||||
Extend the arm
| - | 60*60 | 60*60
| 70*70 | 80*80 | 80*110
| - | - |
*120
| *120 | *120 | *160 | *160
| ||||
Heater weight (does not include heating arm)(kg)
| 10 | 29 | 31
| 53 | 120 | 175
| 660 | 2350 |
Alarm
| - | - | -
| Have | Have | Have
| Have | Have |
Supported horizontal heating
| - | Optional | Optional
| Have | Have | Have
| Have | Have |
Portable
| - | - | -
| - | Have | Have
| Optional | Optional |
