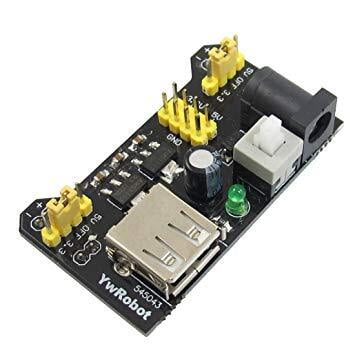

Breadboard Power Supply Module 3.3V/5V Dual Output
BD 4.500
A 3.3V and 5V Breadboard Power Supply Module with series diode, polarity reversal protection. The module can take 6.5V to 12V input and can produce 3.3V and +5V. Its a must have product for experimenters those have to test/prototype electronic circuits on breadboard or perforated/veroboards.
Features
- Breadboard power supply module, with 5 V, 3.3 V output voltages
- Apply to any Standard breadboard
- Input voltage: 6.5-12 V (DC) or 5V USB power supply
- Output voltage: 3.3V and 5V can switch over
- Maximum output current: <700 ma
- Input voltage ON/OFF switch
- Independent control of upper and Lower Bread Board Power Rails. Can switch over to 0 V, 3.3 V, 5 V using jumpers on any rail.
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
Choose Quantity
Product Details
Specifications:
- Input voltage: 10-24VDC, recommended 18V wall power supply (Power Jack)
- Output voltage: 3.3V/5V/Adjustable 1.8-12V
- Output current: 650mA
- Pin Headers for input and output
- Central positive DC 2.1 power jack for input
- Size: 2.64″ x 1.69″
Connectors:
- 1x Barrel 5mm Connector (center +ve) for Input Power
- 1x USB connector for 5V input or 5V output
- 4x 2Pin Headers pointing downward for 3.3V or 5V output (to get output using flying wires)
- 1x 2×4 Header for 3.3V and 5V output
- 2x 1×4 selection jumper for 3.3V/OFF/5V
Please note: This item only comes with a Power Supply Module, Breadboard is not included
