TM4C123G LaunchPad
BD 23.500

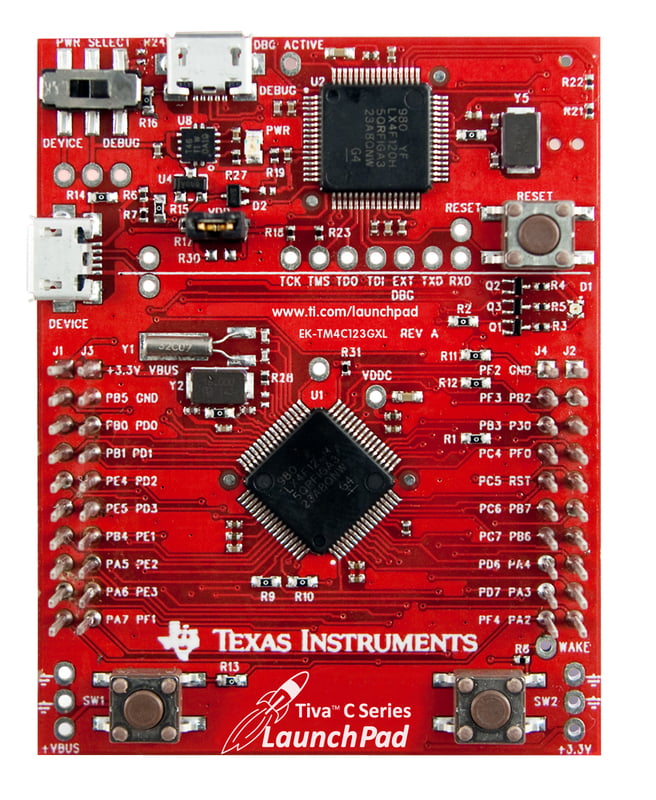

The Texas Instruments Tiva™ C Series TM4C123G LaunchPad (EK-TM4C123GXL) concept is an extremely low-cost, expandable evaluation system for TI microcontrollers. This concept began with the tremendously successful MSP430™ LaunchPad which introduced a large number of engineers to the TImultiProductLinkMSP430 family of microcontrollers (MCUs). The Tiva Series of 32-bit ARM® Cortex™-M4MCU family expands that success by introducing the Tiva C Series TM4C123G LaunchPad featuring the Tiva C Series TM4C123GH6PM microcontroller. A Tiva C Series LaunchPad consists of a target microcontroller, an in-circuit debug interface (ICDI) such as JTAG, a regulated power supply, a minimal microcontroller support circuit, a user interface, and a set of expansion headers. These expansion headers are referred to as the BoosterPack Interface. A BoosterPack is an expansion card designed for this interface. The BoosterPack interface provides a mechanism for developers to easily extend the Tiva C Series LaunchPad with application- and userspecific functions. The EK-TM4C123GXL LaunchPad provides a BoosterPack interface that is compatible with the MSP430LaunchPad. In addition, the TM4C123 LaunchPad provides access to additional Tiva C Series functionality through an extended BoosterPack interface called the BoosterPack XL Interface. BoosterPack interfaces with highly similar functionality for expansion will be available for the Tiva C Series LaunchPad, in addition to microcontroller-family-specific functionality available on a BoosterPack XL Interface for additional options. The Tiva C Series LaunchPad design highlights the TM4C123GH6PMI microcontroller USB 2.0 device interface, hibernation module, and motion control pulse-width modulator (MC PWM) module. The Tiva C Series LaunchPad also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the Tiva C Series TM4C123G LaunchPad BoosterPack XL interface demonstrate how easy it is to expand the functionality of the Tiva C Series LaunchPad when interfacing to other peripherals on many existing BoosterPack add-on boards as well as future products. Key Applications: Low power, hand-held smart devices, Gaming equipment, Home and commercial site monitoring and control, Motion control, Medical instrumentation, Test and measurement equipment, Factory automation, Fire and security, Smart Energy/Smart Grid solutions, Intelligent lighting control, Transportation
MICROCONTROLLER FEATURES
- 80MHz
- 256KB Flash
- 32KB RAM
- 2-KB EEPROM
- On-chip ROM with drivers and boot loaders
- 2x 12ch 12-bit ADCs (1 MSPS)
- 16x Motion PWM channels
- 24x Timer/Capture/Compare/PWMs
- 3x Analog comparators
- 4x SPI/SSI, 4x I2C, 8x UART
- USB Host/Device/OTG
- 2x CAN
- Low-power hibernation mode
- 43x GPIO pins
Choose Quantity
Product Details
Features:
- High Performance TM4C123GH6PM MCU:
- 80MHz 32-bit ARM Cortex-M4-based microcontrollers CPU
- 256KB Flash, 32KB SRAM, 2KB EEPROM
- Two Controller Area Network (CAN) modules
- USB 2.0 Host/Device/OTG + PHY
- Dual 12-bit 2MSPS ADCs, motion control PWMs
- 8 UART, 6 I2C, 4 SPI
- On-board In-Circuit Debug Interface (ICDI)
- USB Micro-B plug to USB-A plug cable
- Preloaded RGB quick-start application
- ReadMe First quick-start guide
