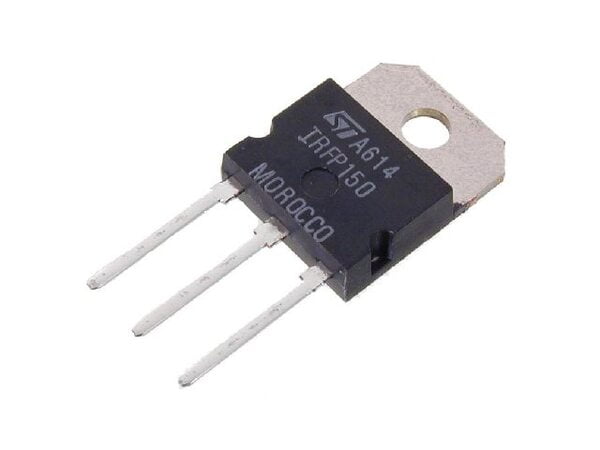

IRFP150 (N-Channel MOSFET)
BD 4.000
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications.
FEATURES
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Isolated Central Mounting Hole
• 175 °C Operating Temperature
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Compliant to RoHS Directive 2002/95/EC
Choose Quantity
Product Details
Technical Specifications
International Rectifier IRFP150 technical specifications, attributes, and parameters.
| Physical | |
|---|---|
| Case/Package | TO-247 |
| Mount | Through Hole |
| Technical | |
| Continuous Drain Current (ID) | 40 A |
| Current Rating | 41 A |
| Gate to Source Voltage (Vgs) | 20 V |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Elements | 1 |
| Packaging | Bulk |
| Power Dissipation | 180 W |
| Voltage Rating (DC) | 100 V |
