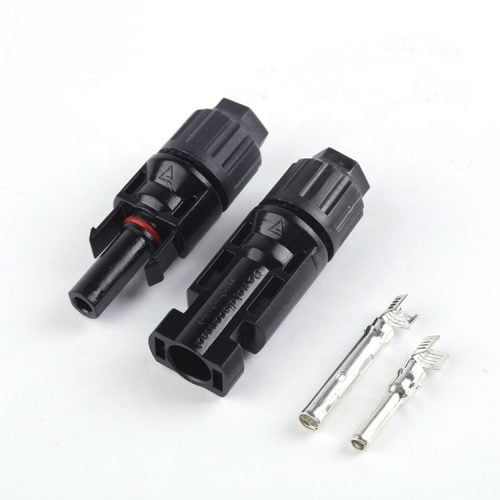

Solar Power Connectors, MC4 for Solar Panel, Male and Female
Non-returnable
BD 2.500
LEADER® solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project. Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).
- Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
- 15 Years of production experience in solar connectors
- TUV approved & Quick and easy to install
- Protection class IP67 Suitable for outdoor harsh environments
- Stable connection & Reducing maintenance cost
Choose Quantity
Product Details
Name MC4 solar connector
Rated current 30A
Rated voltage 1000VDC
Test voltage 6000v (50Hz)
Plug connector ≤5mΩ contact resistance
Connector conductor material Tinned copper
Connector insulation material PPO
Protection level IP67
Flame retardant grade UL94-V0
Safe type II
Insertion force ≤50n
Take force ≥50n
Operating temperature range -40°C~ +90°C
Suitable cable 2.5mm2, 4mm2, 6mm2 (awg14 / 12 / 10)
