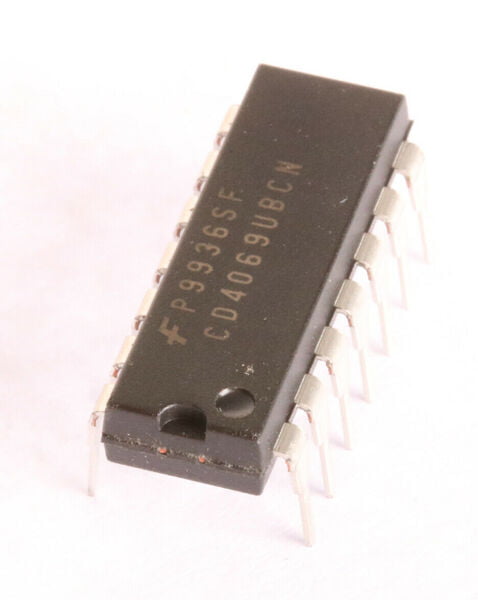

IC CD4069 (Hex Inverter)

The CD4069 device consist of six CMOS inverter circuits. These devices are intended for all general-purpose inverter applications where the medium-power TTL-drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.

 Features

• Standardized symmetrical output characteristics

• Medium speed operation: tPHL, tPLH = 30 ns at 10 V (Typical)

• 100% Tested for quiescent current at 20 V

• Maximum input current of 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C

• Meets all requirements of JEDEC tentative standard No. 13B, Standard Specifications for Description of B Series CMOS Devices
