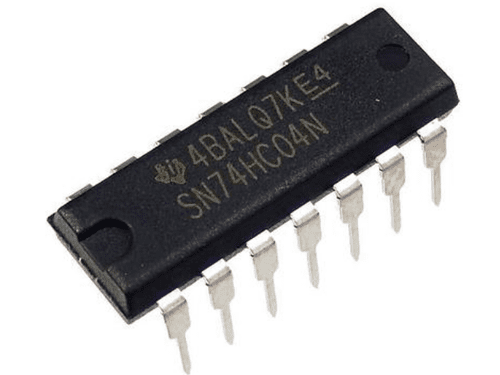

IC 7404 (NOT gate Inverter)
BD 1.400
7404 is a NOT gate IC. It consists of six inverters which perform logical invert action. The output of an inverter is the complement of its input logic state, i.e. when input is high its output is low and vice versa.
Six Hex Inverters in a 14-Pin DIP Package
Outputs Directly Interface to CMOS, NMOS and TTL
Large Operating Voltage Range
Wide Operating Conditions
Operating Condition of IC 74LS04:
Characteristics:
Six Hex Inverters in a 14-Pin DIP Package
Outputs Directly Interface to CMOS, NMOS and TTL
Large Operating Voltage Range
Wide Operating Conditions
Operating Condition of IC 74LS04:
1. The power supply should be given to the IC from 4.5V DC to 5.25V DC
2. The IC will consider a signal as high when the voltage of the signal is above 2V
3. The IC will consider a signal as low when the voltage of the signal is below 0.8V
4. The operating temperature of the IC should be below the 70-degree centigrade
Characteristics:1. IC 74LS04 can deliver -0.4 mA current when the output is high.2. It can deliver 16 mA current when the output is low.3. When the Vcc is 5V and the input signal is 5V then the IC draws 1 mA current.4. When the Vcc is 5V and the input signal is 2.7V then the IC draws 20 to 40 micro-ampere currents.5. When the Vcc is 5V and the input signal is 0.4V then the IC draws -1.6 mA current.
Application of IC 7404:
1. IC 7404 is mostly used for digital electronics projects.2. They are also used in some electronic devices.3. They are also used in Space instruments.
1. IC 7404 is mostly used for digital electronics projects.
2. They are also used in some electronic devices.
3. They are also used in Space instruments.
Choose Quantity
Product Details
Pin Description of the IC 74LS04:
We have numbered the NOT Gates by 1, 2, 3, 4, 5, 6.
Pin 1: The pin 1 is the input for 1st NOT Gate.
Pin 2: Pin 2 is the output of 1st NOT Gate.
Pin 3: Pin 3 is connected to the input of the 2nd NOT Gate.
Pin 4: Pin 4 is the output of the 2nd NOT Gate.
Pin 5: Pin 5 is connected to the input of the 3rd NOT Gate.
Pin 6: Pin 6 is connected to the output terminal of the 3rd NOT Gate.
Pin 7: Pin 7 is the ground pin, it is used to provide power supply to the IC.
Pin 8: It is the output pin of the 4th Gate.
Pin 9: It provides the input pin for the 4th Gate.
Pin 10: Output of the 5th Gate is connected to the pin 10
Pin 11: Input of the 5th Gate.
Pin 12: It is connected to the output of the 6th Gate.
Pin 13: The pin 13 is connected to the input of 6th Gate.
Pin 14: It is the Vcc terminal of the IC, it is used to provide the power supply to the IC chip.
