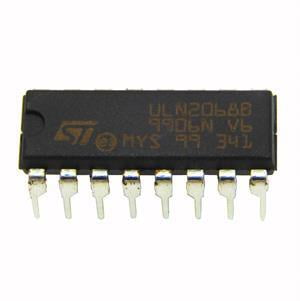

ULN2068B (Bipolar Transistor Array, Darlington, NPN, 50V, 1W, 1.5A)
BD 2.800
Designed to interface logic to a wide variety of high current, high voltage loads, these devices each contain four NPN darlington switches delivering up to 1.5 A with a specified minimum breakdown of 50 V and a sustaining voltage of 35 V measured at 100 mA. The ULN2064B, ULN2066B, ULN2068B and ULN2070B contain integral suppression diodes for inductive loads have common emitters. The ULN2074B and ULN2076B feature isolated darlington pinouts and are intended for applications such as emitter follower configurations. Inputs of the ULN2064B, ULN2068B and ULN2074B are compatible with popular 5 V logic families and the ULN2066B and ULN2076B are compatible with 6- 15 V CMOS and PMOS. Types ULN2068B and ULN2070B include a predriver stage to reduce loading on the control logic.
Choose Quantity
Product Details
KEY FEATURES
- Versions compatible with all popular logic families
- Output current to 1.5 A for each Darlington
- Sustaining voltage at least 35 V
- Minimum breakdown 50 V
- Isolated Darlington pinout (ULN2074B)
- Integral suppression diodes (ULN2064B, ULN2066B and ULN2068B
