DS18B20 Water-Proof Temperature Sensor Probe
BD 4.000
Out of stock
This is a sealed (waterproof) and pre-wired digital temperature probe, based on DS18B20, 1-wire digital temperature sensor from Maxim IC, providing data in degree Centigrade with 9 to12 bit precision over the range of operation (-55C to 125C). This probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. Because they are digital, you don't get any signal degradation even over long distances!
Each DS18B20 IC has been assigned unique 64-Bit Serial Number at the time of manufacturing - allowing for a large number of such sensors to be used on one data bus. Thus a single microcontroller can receive data from many DS18B20s distributed over a large area. This feature could be handy in various data-logging and temperature control applications.
DS18B20 has an alarm function which can be used for setting user-programmable upper and lower trigger points. It has 1-Wire® bus communication feature, requiring only one data line (and ground) for communication with microprocessor. The DS18B20 has accuracy of ±0.5°C over the range of -10°C to +85°C.
The only downside is they use the Dallas 1-Wire protocol, which is somewhat complex, and requires a bunch of code to parse out the communication. When using with microcontroller put a 4.7k resistor to sensing pin, which is required as a pullup from the DATA to VCC line.
Each DS18B20 IC has been assigned unique 64-Bit Serial Number at the time of manufacturing - allowing for a large number of such sensors to be used on one data bus. Thus a single microcontroller can receive data from many DS18B20s distributed over a large area. This feature could be handy in various data-logging and temperature control applications.
DS18B20 has an alarm function which can be used for setting user-programmable upper and lower trigger points. It has 1-Wire® bus communication feature, requiring only one data line (and ground) for communication with microprocessor. The DS18B20 has accuracy of ±0.5°C over the range of -10°C to +85°C.
The only downside is they use the Dallas 1-Wire protocol, which is somewhat complex, and requires a bunch of code to parse out the communication. When using with microcontroller put a 4.7k resistor to sensing pin, which is required as a pullup from the DATA to VCC line.
Cable specs:
- Stainless steel tube 6mm diameter by 30mm long
- Uses DS18B20 temperature sensor
- Cable is 4mm diameter and 1 Meter Long

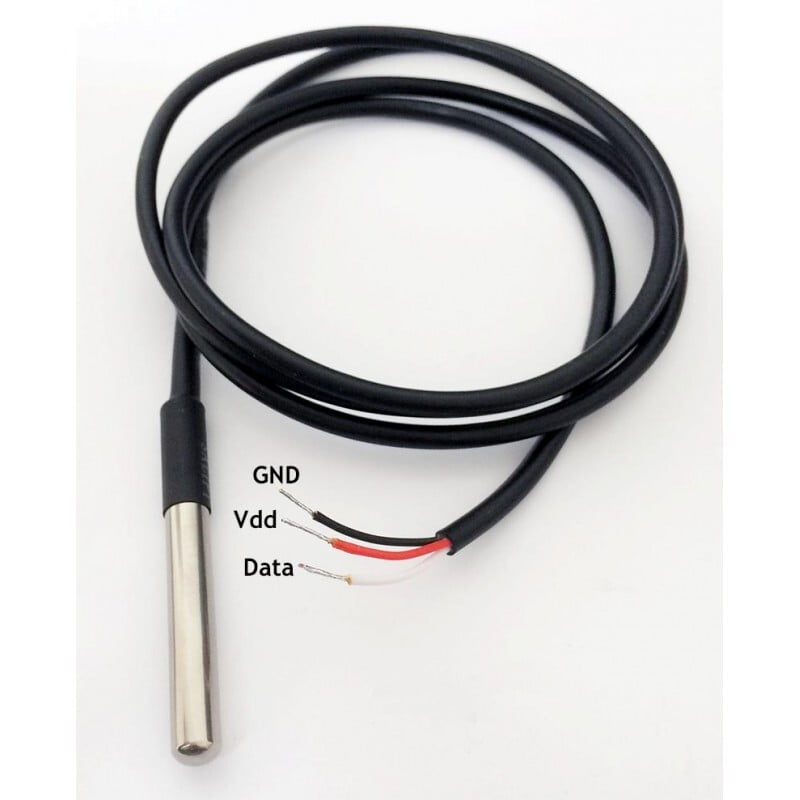

- Three wires - Red connects to 3-5V, Black connects to ground and White is data.
DS18B20 Sensor Technical specs:
- Usable temperature range: -55 to 125°C (-67°F to +257°F)
- 9 to 12 bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- ±0.5°C Accuracy from -10°C to +85°C
- Temperature-limit alarm system
- Query time is less than 750ms
- Usable with 3.0V to 5.5V power/data
Product Details
Application :
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.
Package Includes :
1 x Thermal probe/sensor DS18B20
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.
Package Includes :
1 x Thermal probe/sensor DS18B20
