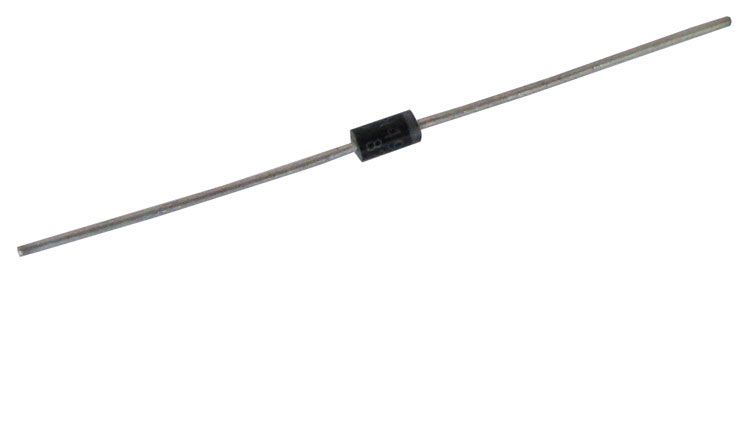

1N4936 Diode 400v, 1A
BD 0.400
Rectifier Diodes, 1A to 1.5A, Fairchild Semiconductor
Diodes and Rectifiers, ON Semiconductor
Whether you are working on a new design, or purchasing, ON Semiconductor provides you with industry-standard diodes and rectifiers, small signal diodes, Schottky and Zener diodes. The components offer the best available combination of quality, features, and packaging options.
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package Type | DO-41 |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 400V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.2V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 150ns |
| Diameter | 2.72mm |
| Peak Non-Repetitive Forward Surge Current | 30A |
