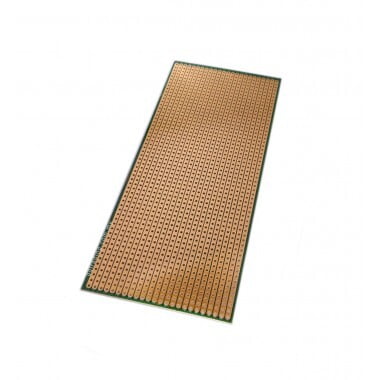

PCB Board, 100mm x 160mm
BD 3.000
Stripboard is a prototyped Circuit Board with a standard Stripboard pattern, featuring board-length running songs. It has 0.1 "hole spacing for DIP ICs and headers and other parts. It has higher quality than traditional Stripboard. The holes are DRILLED, not drilled. The base material is high quality glass FR4 epoxy plate. It has the best stability and moisture resistance than Boards using phenolic or paxolin paper (synthetic resin) that can warp with exposure to moisture.
Choose Quantity
Product Details
- Standard perforated plate pattern, with tracks for table length.
- High quality single sided FR4 glass-epoxy circuit board.
- 1oz / m2 copper with a stone to facilitate welding. latest lead and RoHS compliant intervention.
- 38 x 62 strip holes (38), 0.037 "holes are drilled at 0.1" (8.3 foot) centers.
- Height (3U) EUROCARD / VME Standard single size. 3.9 "wide, 6.3" long, 1/16 "thick (100 x 160 x 1.6mm). Installs, 3U Size are available.
