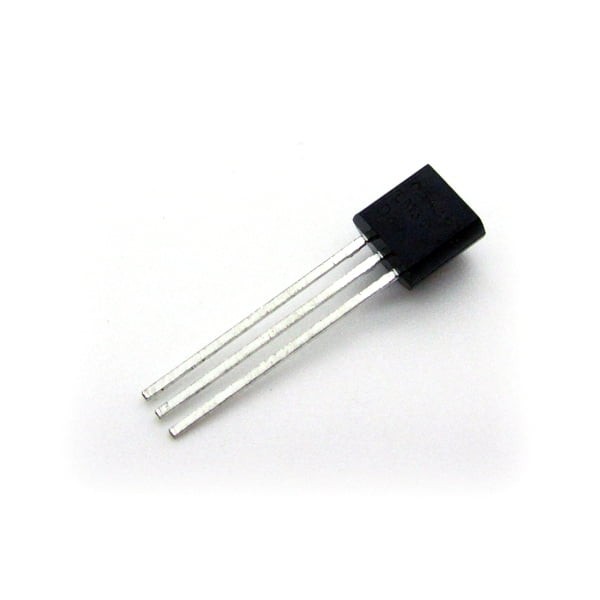

3.3V Voltage Regulator L78L33
Non-returnable
BD 0.500
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or onboard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers improvement along with lower quiescent current
Specifications:
- Mounting Style: Through Hole
- Number of Outputs: 1 Output
- Polarity: Positive
- Output Voltage: 3.3 V
- Output Current: 100 mA
- Output Type: Fixed
- Input Voltage MAX: 30 V
- Input Voltage MIN: 5.3 V
- Minimum Operating Temperature: 0 C
- Maximum Operating Temperature: + 150 C
- Load Regulation: 60 mV
- Line Regulation: 150 mV
- Size: 4.95 mm x 4.95 mm x 3.94 mm
- PSRR / Ripple Rejection - Typ: 49 dB
Choose Quantity
Product Details
Pin Out (Bottom View)
