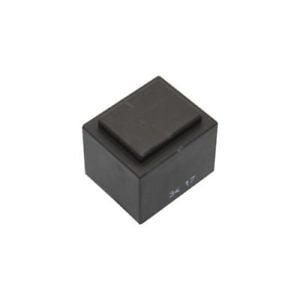

Transformer, 2.3VA, 230VAC, 12V, 192mA

• core: EI30
• short circuit proof
• primary voltage: 230V (50/60Hz)
• rated power: 2.3VA
• test voltage: 4kV/50Hz
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB use
• temperature resistance class: ta 40/F
• end temperature in case of short-circuit, max.: 190°C
• end temperature in standard use: 140°C
• no load voltage (acc. to VDE 0570): <2xUN sek
• manufacturer: Hahn
