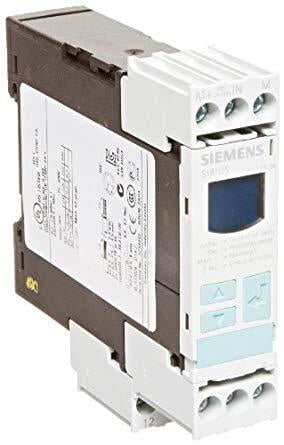

SIEMENS Timer 3UG4622-1AW30
Non-returnable
66.500BD
Out of stock
A current monitoring relay that will protect equipment against over current and undercurrent states in DC and 1 phase AC systems. The relay features an LCD display to make setup and monitoring easy. Suitable applications include complete network monitoring with portable equipment and monitoring of the load of motors and the functionality of electrical loads.
- DIN Rail mounting
- External and auto reset
- DC Current window recognition
- SPDT-CO Contact
- Screw terminals
- Adjustable open/closed-circuit current principle
- UL Approval
Product Details
| Measuring circuit | |
| Measurable current | 0.05 to 15A |
| Measurable line frequency | 40 to 500Hz |
| Adjustable pick-up value current | 0.05 to 10A |
| Response delay (starting) | 0.1 to 20s |
| Response delay (limits) | 0.1 to 20ss |
| Adjustable switching hysteresis | 10 to 5000mA |
| Buffer time for power failure | 10ms |
| Operating voltage24 to 240V | |
| Repeat accuracy | 1% |
| Outputs | |
| Configuration | SPDT-CO |
| Output current | 3A |
| General | |
| Control supply voltage | 24 to 240V AC/DC |
| Startup time | 1000ms |
| Consumed active power | 2W |
| Surge voltage | 4kV |
| Insulation voltage | 300V |
| Ambient temperature | -25° to +60°C |
| Dimensions | 92 x 22.5 x 91mm |
