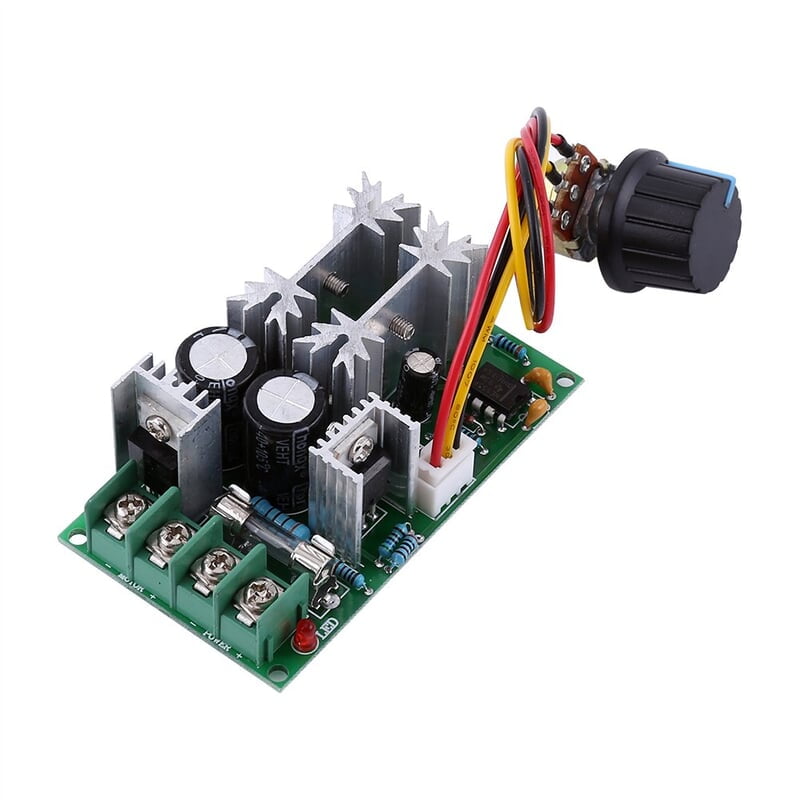

DC Motor Speed Controller, 10v to 60v

*【Description:】
This is a DC 10V-60V 20A DC Motor PWM Speed Controller,Its own power supply reverse polarity protection, control voltage over-voltage protection, 20A fast-blow ceramic fuse.

*【Usage:】
Adjust the knob of potentiometer to change the output occupying Vacancy proportion of controller, and the motor speed will change.

*【Specifications:】
Input Voltage: DC 10V-DC 60V (Ultra wide working voltage)；
Output voltage: linear under load；
Control Power: 0.01-1200W；
Rated Current: 10A；
Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.)；
PWM Duty Cycle: 0%-100%；
PWM Frequency: 25Khz；
Product Size(L x W x H): 77*45*28mm；
